CSIP Level 1 Disassembly: Disassembly Procedures

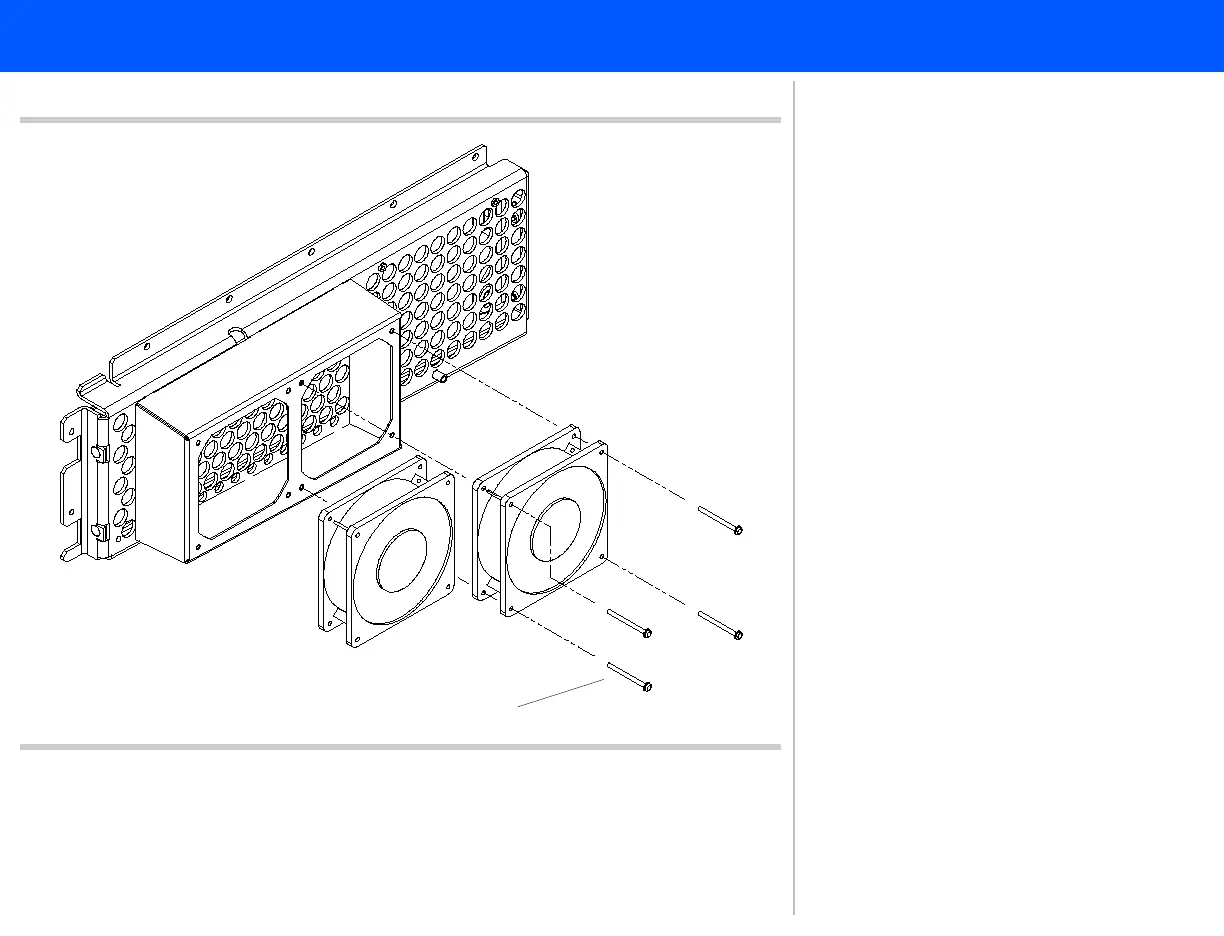

Figure 10-79 Filter Tray Cooling Fans
Panhead screws (4 plcs)
6
6. Remove the four panhead screws
securing each filter tray cooling fan
to the filter tray bracket. The filter
tray cooling fans are now completely
disconnected.
Return to .Disassembly Procedure List
(2 of 2)
