4535 611 98931 iE33 Service Manual Page 354
CSIP Level 1 Cabling: System Connector Illustrations

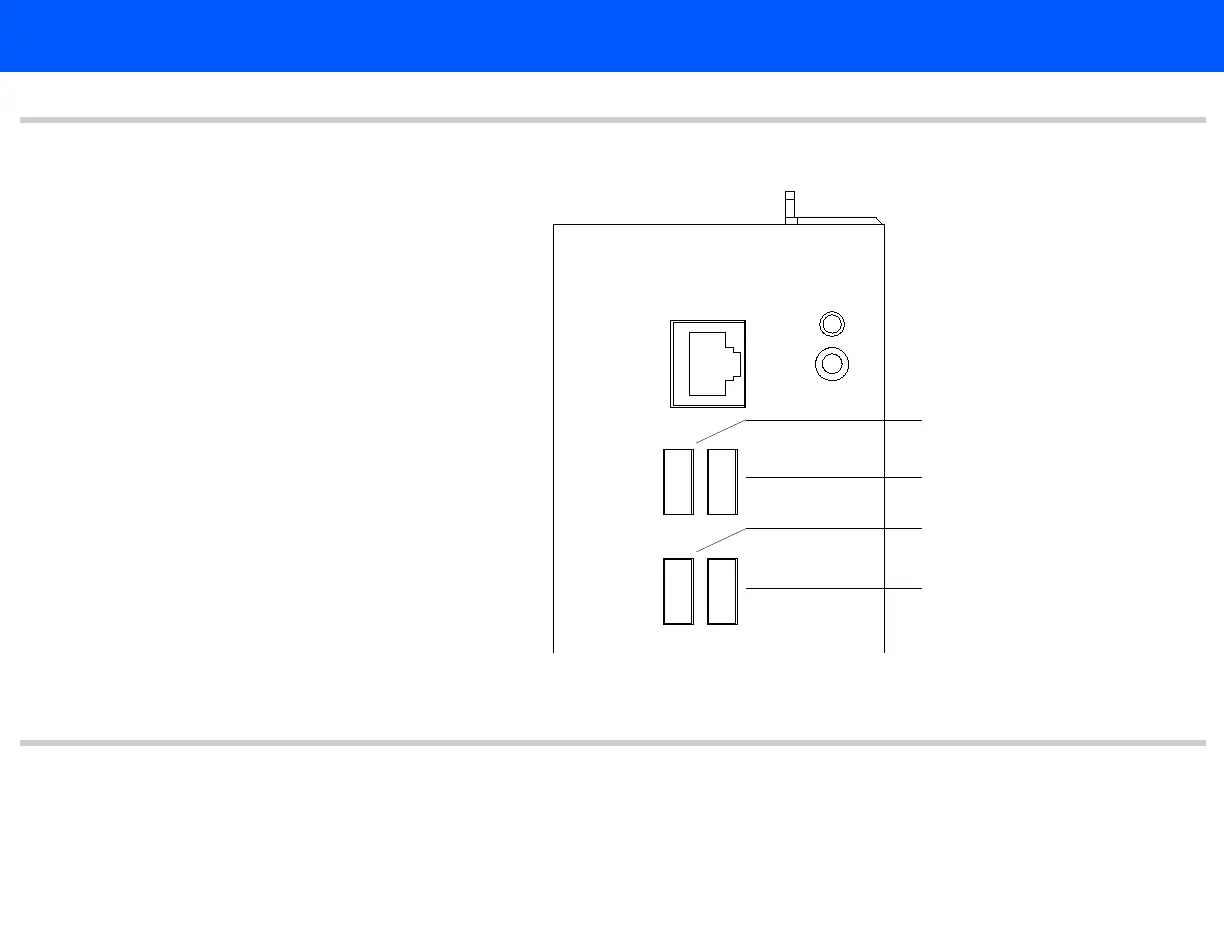

Figure 11-4 Rear Interface Panel Dual USB Connector Configuration
P19, Bluetooth (1.1 USB)
P20, OEM 2 (1.1 USB)
For single-OEM configuration, connect
USB 1.1 OEM to the OEM 1 USB port
For dual OEM configuration, connect
USB 1.1 lower OEM to the OEM 1 USB port
and the upper OEM to the OEM 2 USB port
P20, OEM 1 (1.1 USB)
P19, modem (1.1 USB)
