Philips iE33 - Figure 10-9 Control Panel Articulation Top Lid Enclosure

4535 611 989314730-0047-01iE33 Service Manual Page 269
CSIP Level 1 Disassembly: Disassembly Procedures

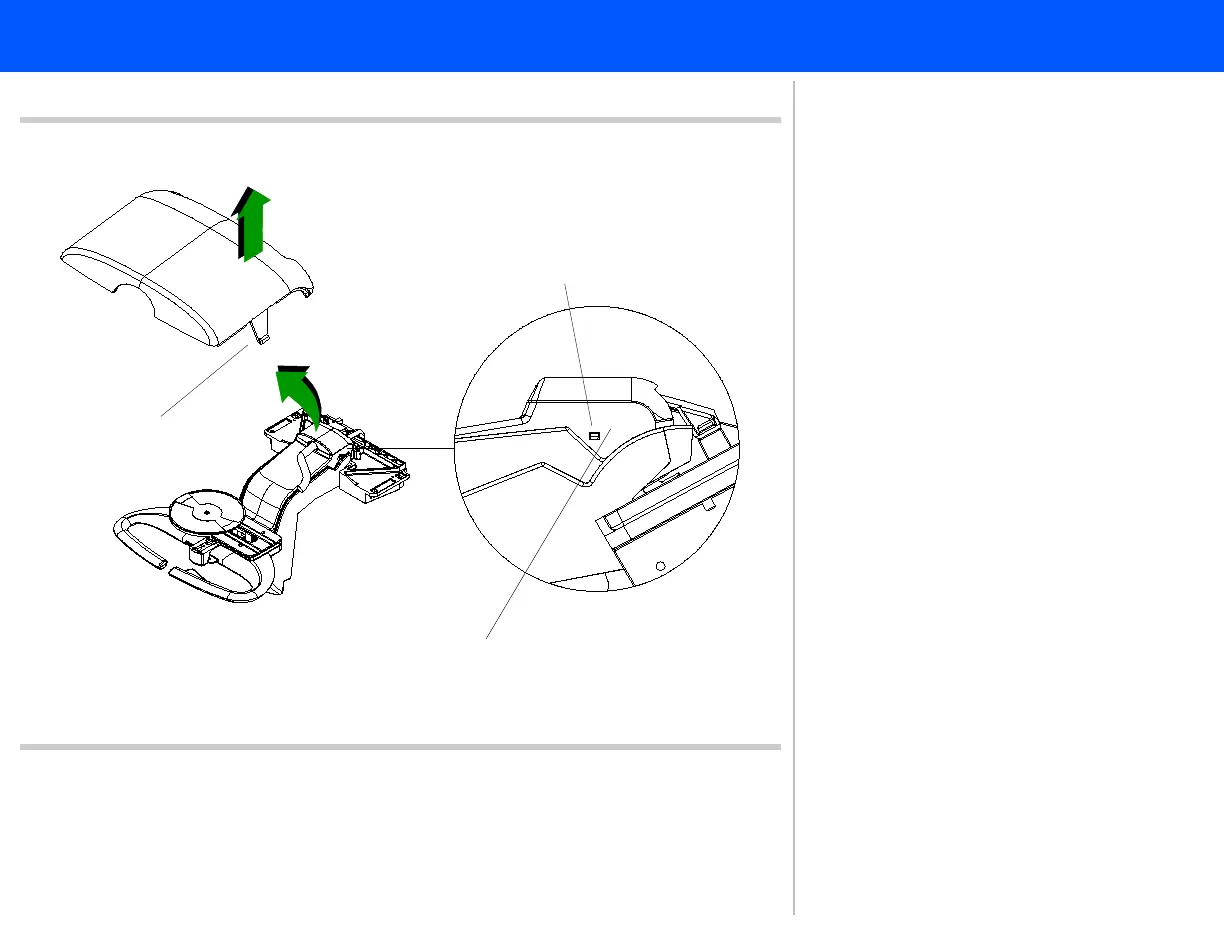

Figure 10-9 Control Panel Articulation Top Lid Enclosure
Lock tab
(2 plcs)
Tab slot (2 plcs)
Upper articulation arm enclosure
12
13
14
12. To remove the control panel articu-
lation top lid enclosure, find the two
tab slots (one on each side of the
upper articulation arm enclosure).
13. Press in on the lock tabs while pull-
ing upward on the top lid enclosure.
14. When the tabs are no longer in the
slots, pull upward again to disengage
the top lid enclosure from the arm
frame.
Return to .Disassembly Procedure List
(1 of 2)
