4535 611 989314730-0047-01iE33 Service Manual Page 176
CSIP Level 1 Installation: Installation Procedures
Video Monitor Articulation Arm

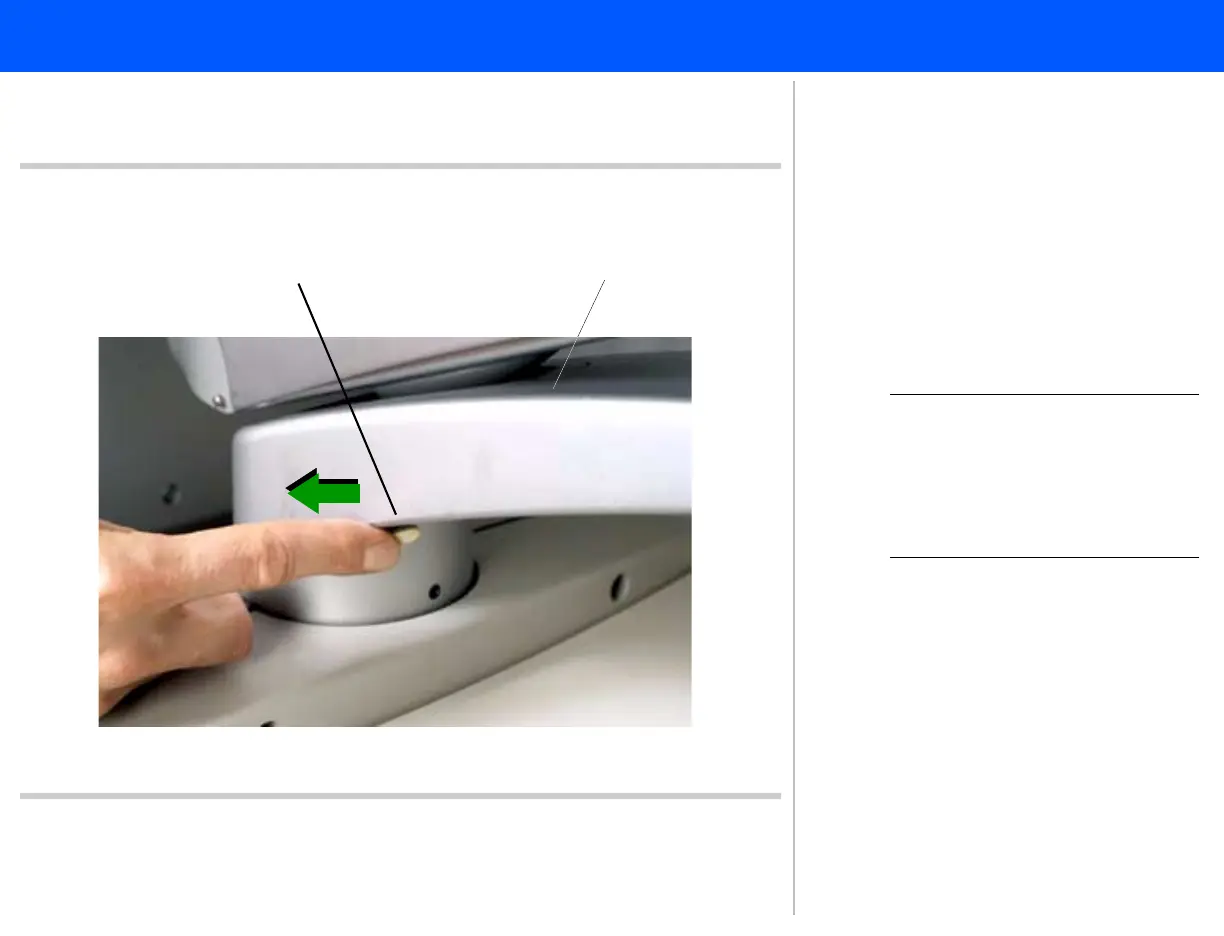

Figure 5-37 Unlocking the Articulation Arm
Lower armRelease lever
➤ To unlock the video monitor
articulation arm
Push the arm release lever toward the
articulation arm base to release the
latch.
NOTE The iE33 Ultrasound System is
shipped with the video monitor
articulation arm in the locked
position. Lock the articulation
arm before moving the system.
Return to Installation Procedure List.
