4535 611 989314730-0047-01iE33 Service Manual Page 322
CSIP Level 1 Disassembly: Disassembly Procedures

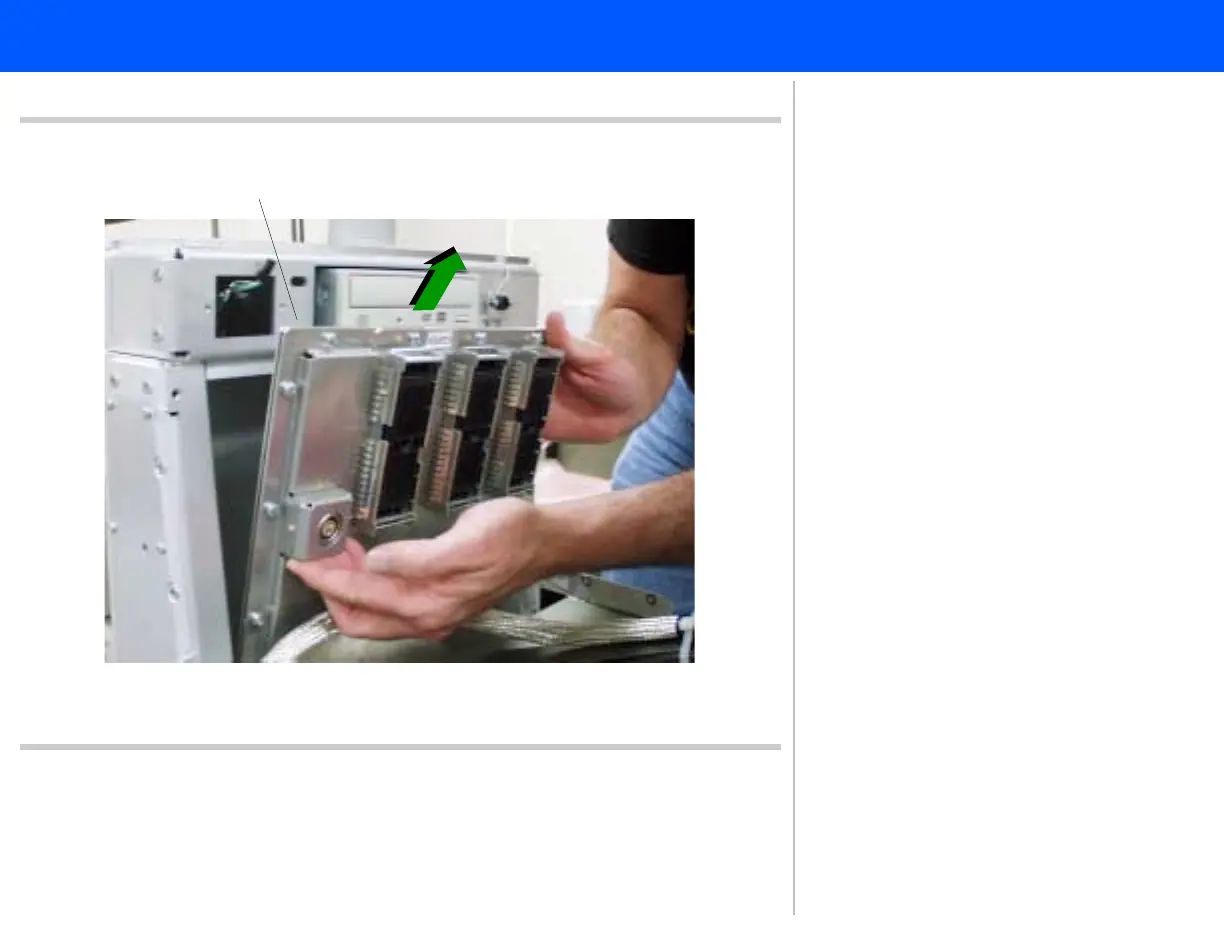

Figure 10-62 Scanhead Select Module
7
7. Gently lift the Scanhead Select Mod-
ule, tilt it forward, and remove the
assembly from between the Acquisi-
tion Card Cage and the system
frame.
Perform this procedure in reverse for
reassembly.
Return to .Disassembly Procedure List
(1 of 2)
