CSIP Level 1 Disassembly: Disassembly Procedures

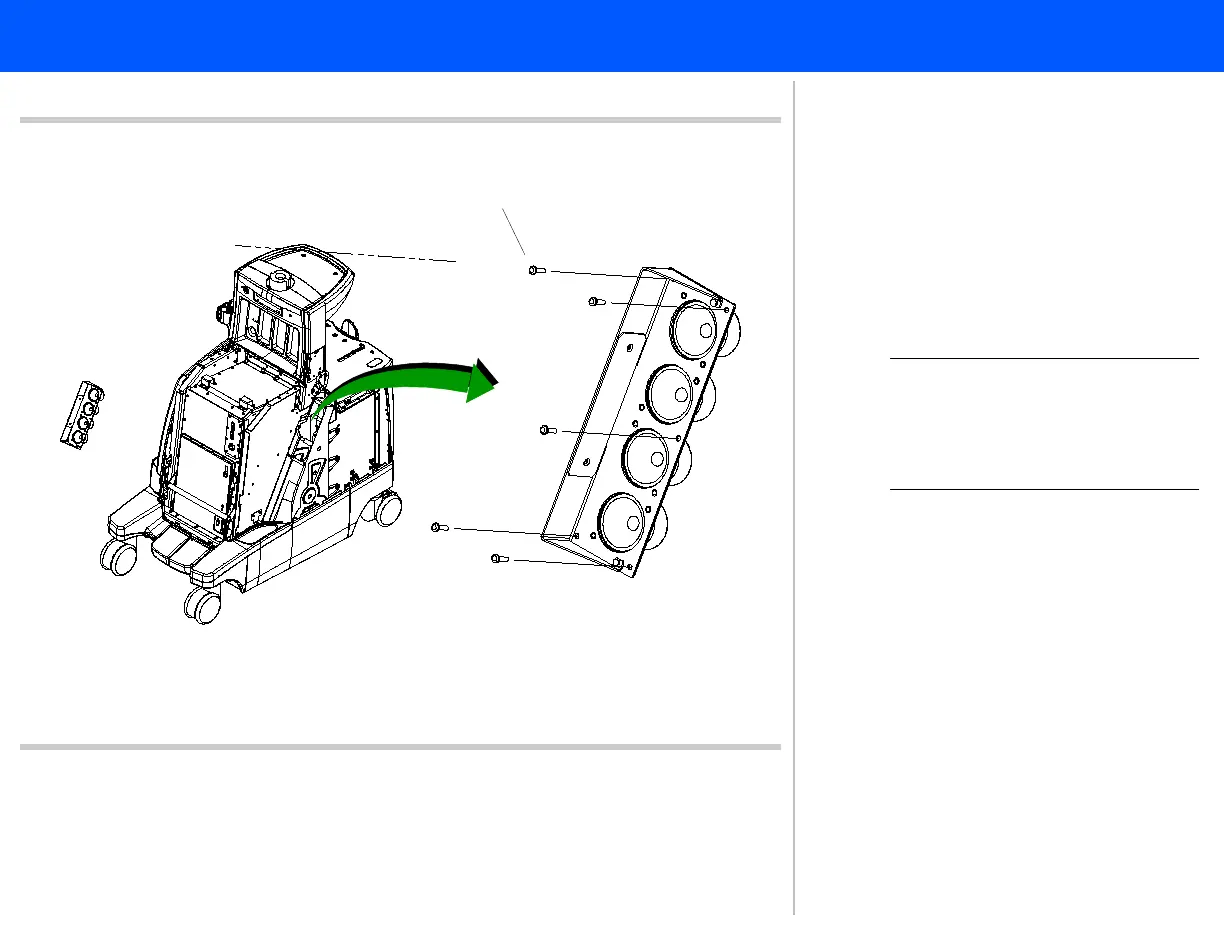

Figure 10-47 Speaker Mounting Plate
Panhead screws (5 plcs)
12
12. Remove the five panhead screws
securing the speaker mounting plate
to the speaker box assembly. The
speaker assembly is now completely
disconnected.
NOTE There is no need to remove
the entire speaker box assem-
bly when speaker replacement
is required.
Return to .Disassembly Procedure List
