CSIP Level 1 Installation: Installation Procedures

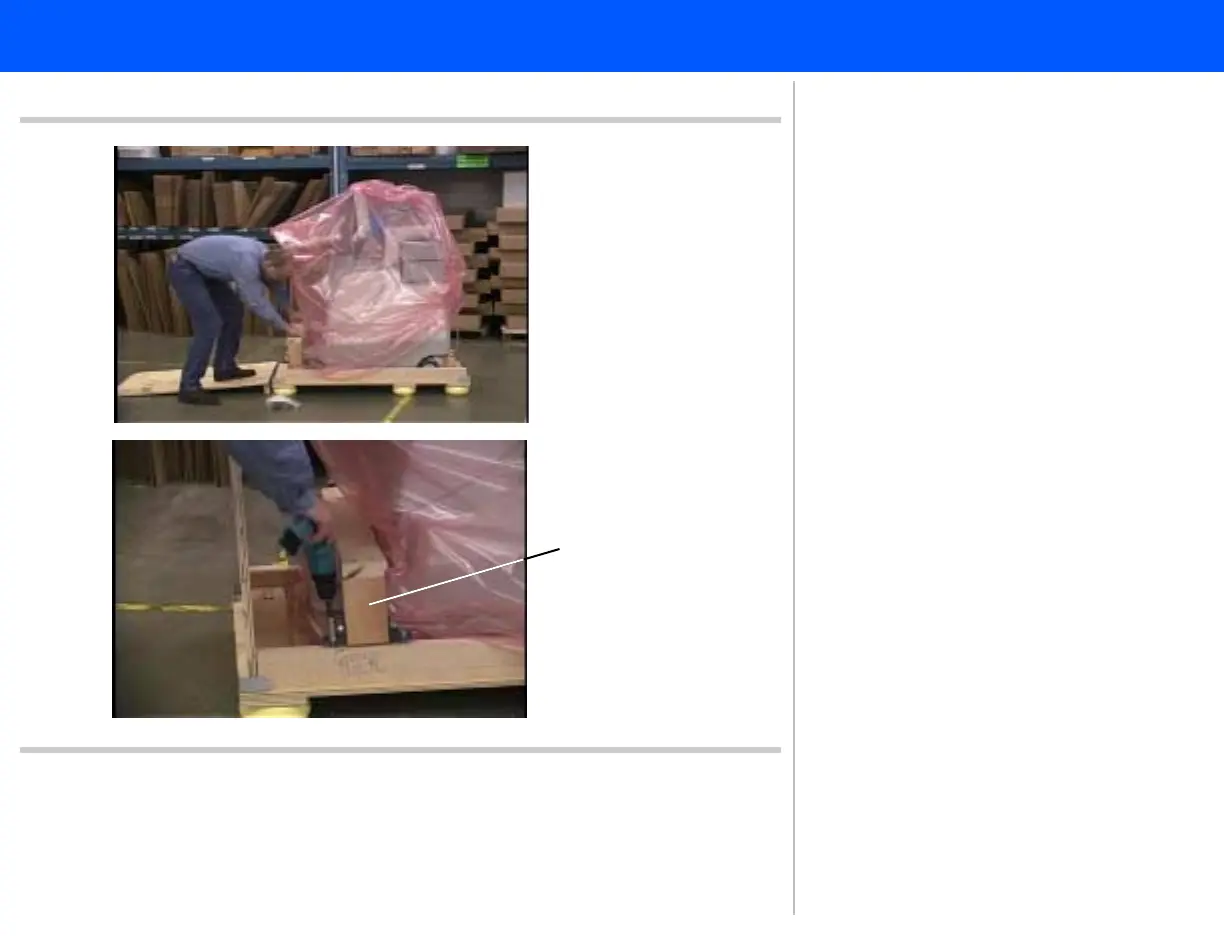

Figure 5-23 Installing the Front Hold-Down Brace
Hold-down brace
10. Place the hold-down brace over the
front casters, noting that the foam
bevel must follow the contour of the
system.
11. Insert the four 9/16-inch bolts.
Tighten the bolts securing the front
hold-down brace to the pallet.
