4535 611 989314730-0047-01iE33 Service Manual Page 165
CSIP Level 1 Installation: Installation Procedures

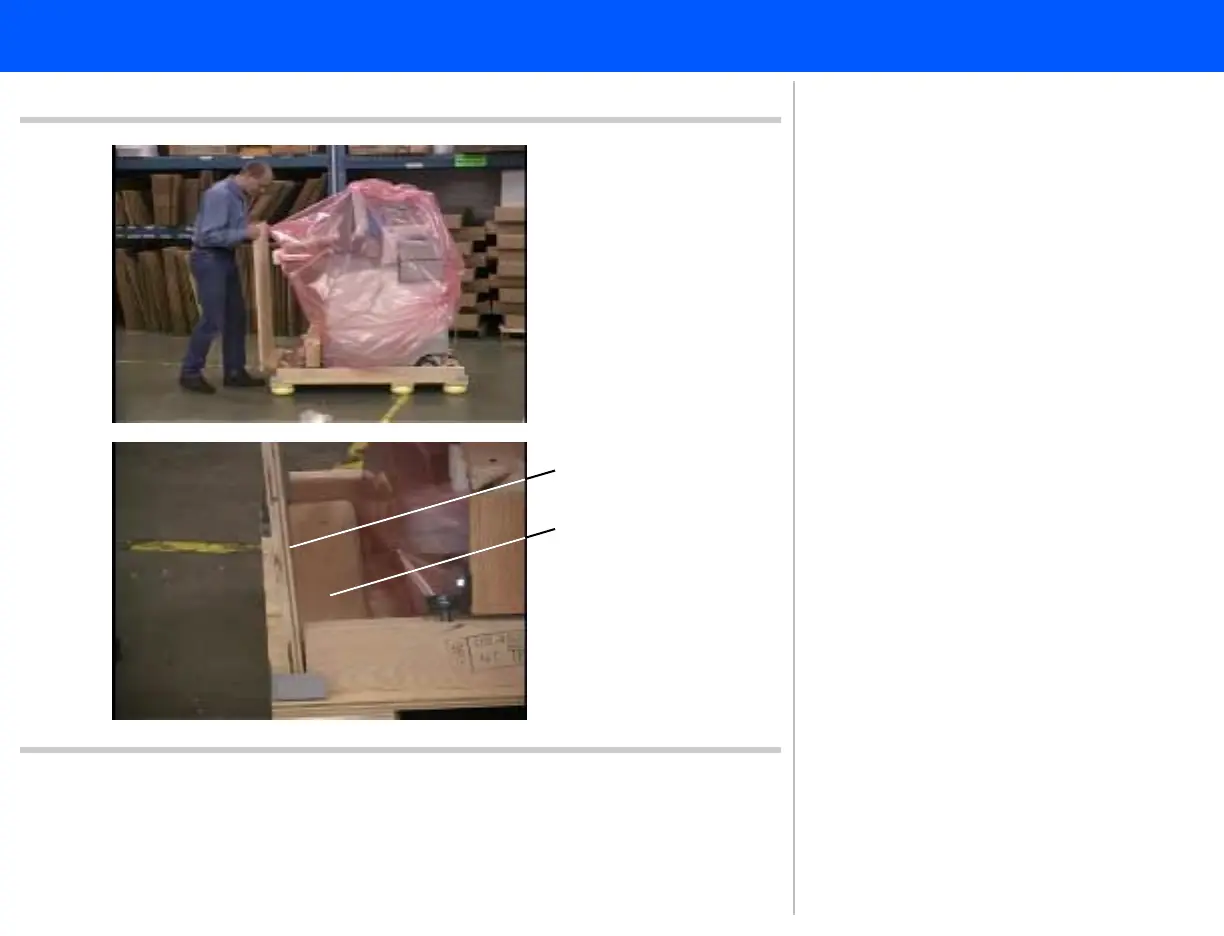

Figure 5-26 Installing the Ramp onto the Pallet
Ramp brace
Ramp
14. Reverse the ramp and place it
upright on the system front side of
the pallet.
15. Secure the ramp to the pallet with
two 9/16-inch bolts. The bolts insert
through the ramp brace from the
inside of the crate.
Return to Installation Procedure List.
