4535 611 98931 iE33 Service Manual Page 360
CSIP Level 1 Cabling: OEM Cabling Diagrams

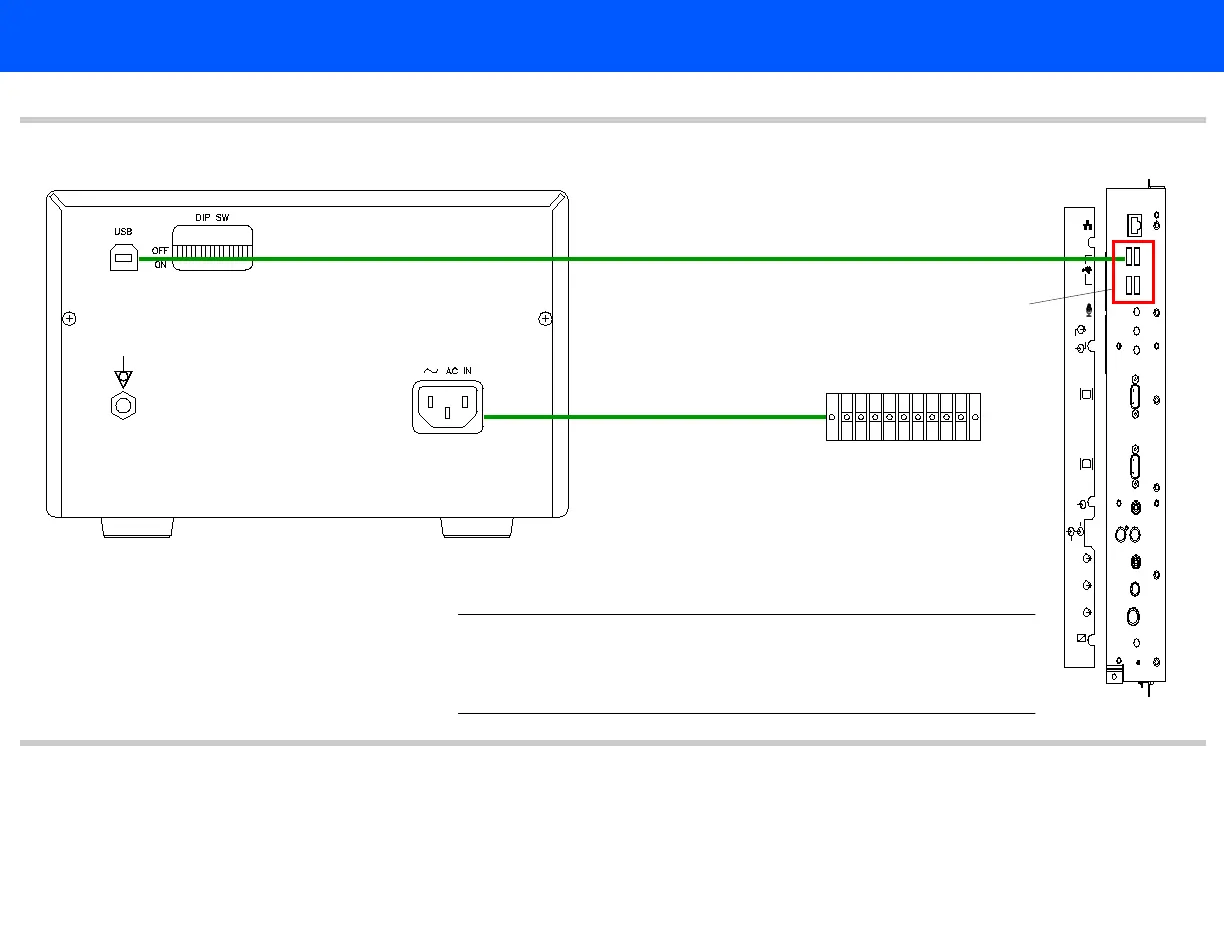

Figure 11-10 UP-D895MD Sony Digital Black-and-White Printer Cabling Diagram
iE33 rear interface panel
(AVIO-RIP)
453561153452
453561179291
AC tray
terminal block
UP -D895MD printer
NOTE Do not disconnect the 453561153452 USB cable from the
system rear interface panel. If it has to be disconnected,
ensure that it gets reconnected to the same port.
See Figure 11-4 for USB configuration
