Philips iE33 - Figure 14-2 iE33 Ultrasound System Parts Locator Map (Left and Right Sides)

4535 611 98931 iE33 Service Manual Page 377
CSIP Level 1 Parts: Illustrations

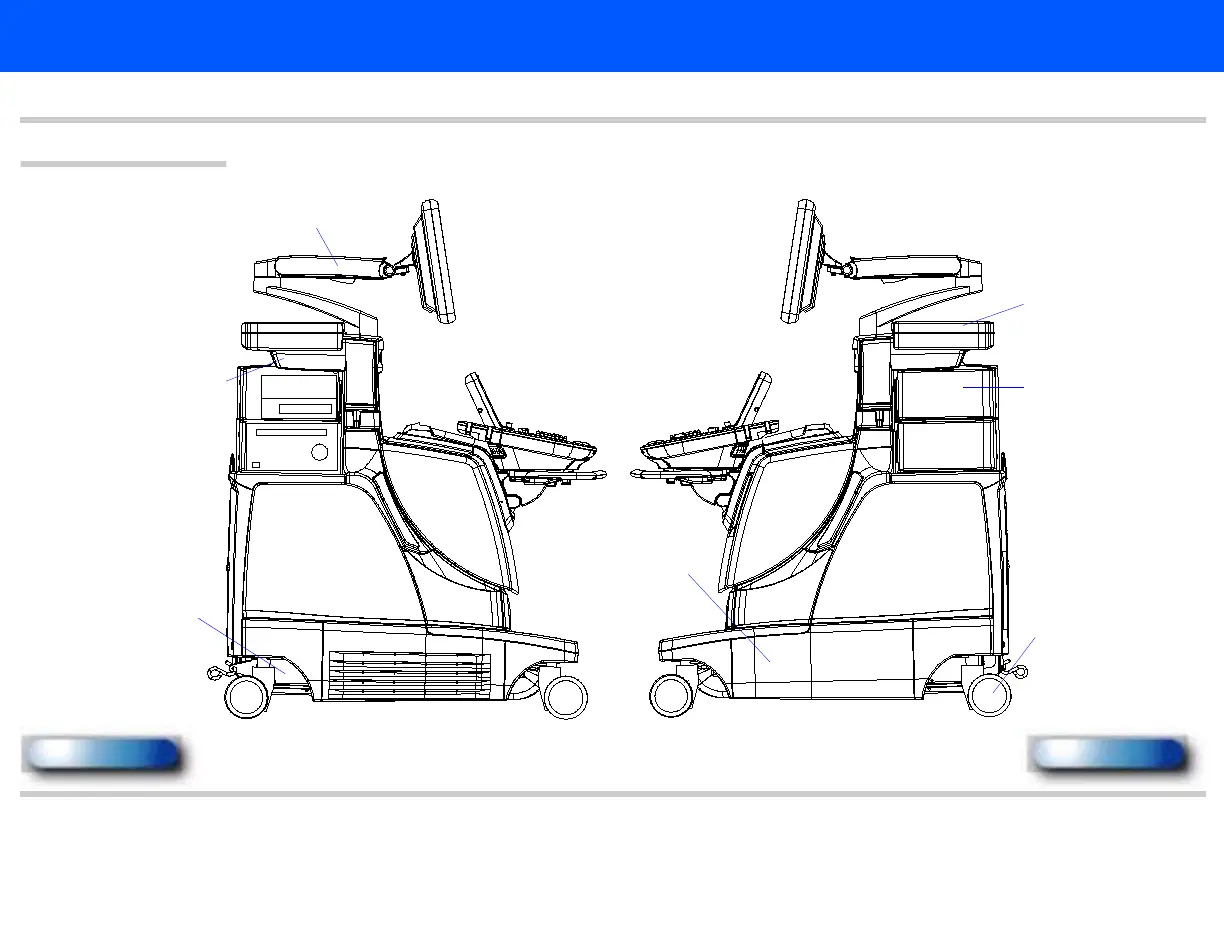

Figure 14-2 iE33 Ultrasound System Parts Locator Map (Left and Right Sides)
SYSTEM VIEW
End Views
- Left - - Right -
See Figure 14-7
Video monitor articulation arm
See Figure 14-39
Power supply
enclosure
System enclosures
See Figure 14-24
Casters
See Figure 14-55
OEM deck
See Figure 14-30
System enclosures
See Figure 14-23
Parts List
TEE probe tray
See Figure 14-34
System labeling
Side, Figure 14-58
Front, Figure 14-59
Rear, Figure 14-63
