CSIP Level 1 Disassembly: Disassembly Procedures

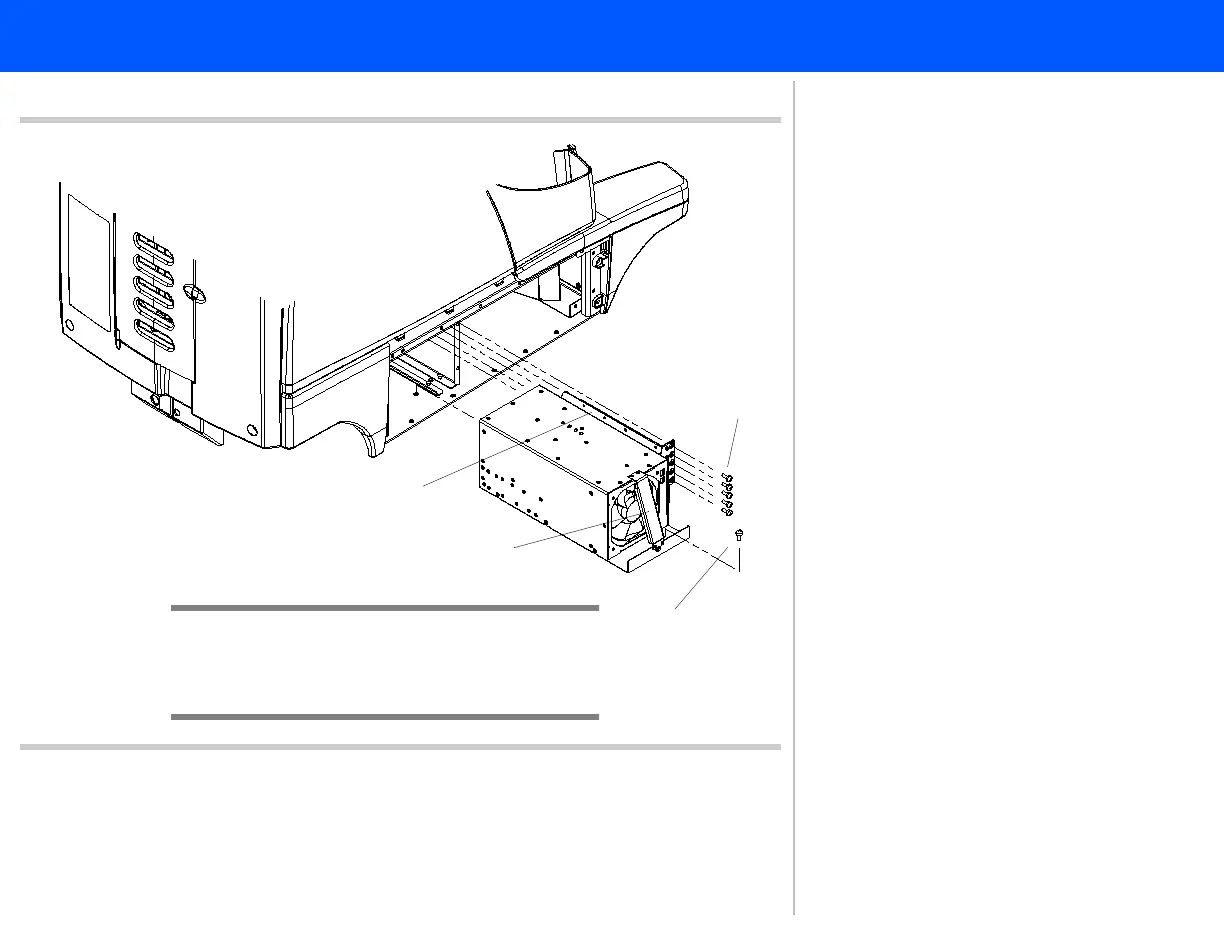

Figure 10-75 Platform Power Supply
Breakout board
bracket screws
(5 plcs)
Panhead screw
Handle
Breakout board
CAUTION Torque the five screws on the breakout
board bracket to 30 in-lb. Improper torque
on these screws causes damage.
6
7
6
6. To remove the Platform Power Sup-
ply remove the five screws from the
Platform Power Supply breakout
board bracket and the screw secur-
ing the power supply to the cart
frame.
7. Grasp the Platform Power Supply
handle and partially pull the power
supply out and disconnect the power
cable. The power cable connector is
on the back of the breakout board.
The Platform Power Supply assembly
is now completely disconnected.
Return to .Disassembly Procedure List
(2 of 2)
