4535 611 989314730-0047-01iE33 Service Manual Page 317
CSIP Level 1 Disassembly: Disassembly Procedures

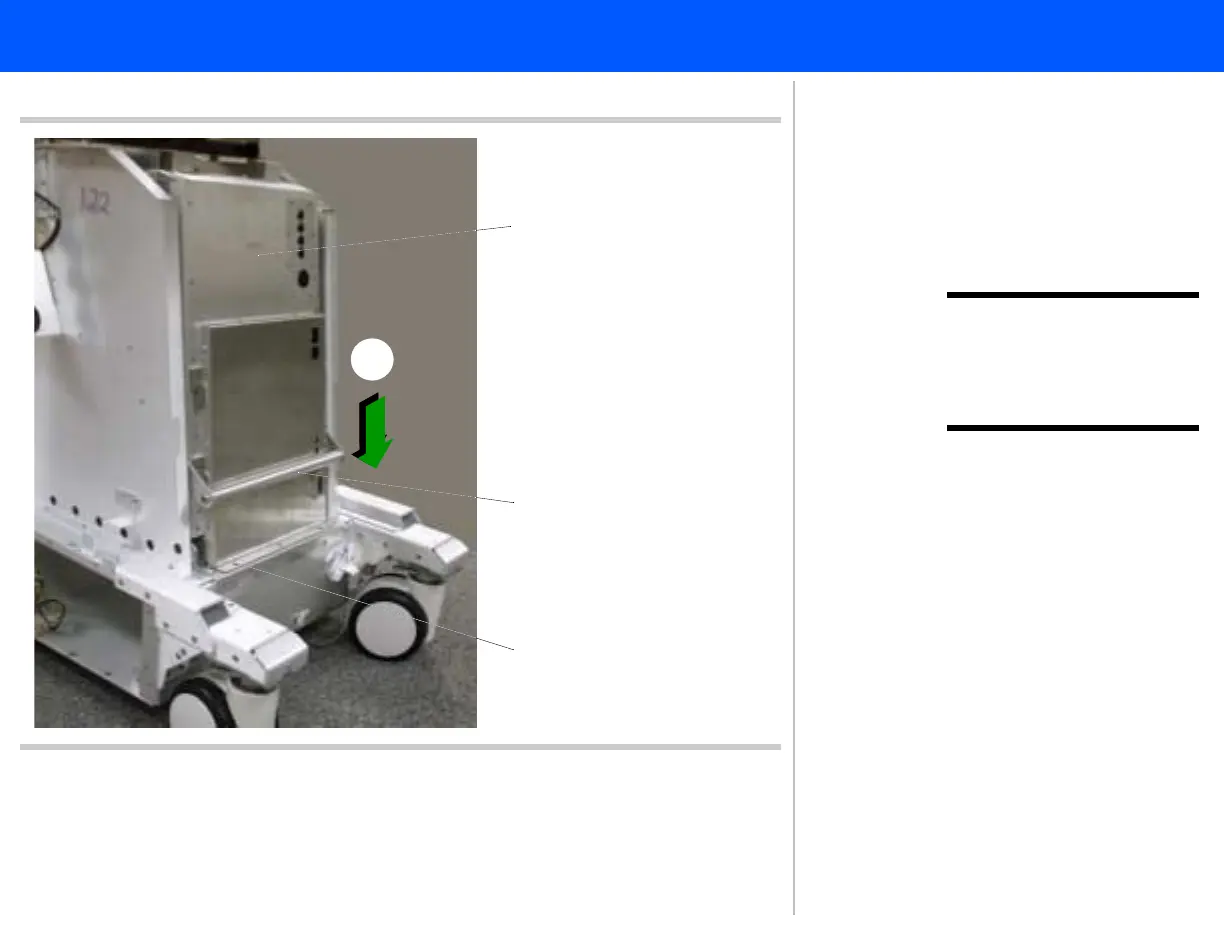

Figure 10-57 Reinstalling the Frontplane Assembly
Mechanical arm
15
17
16
15. Use step 12 through step 14 in
reverse for re-assembly
(Figure 10-56).
WARNING Refer to Figure 10-53.
Read all warnings before
reinstalling the Frontplane
assembly.
16. Gently push the mechanical arm
downward to engage the Frontplane
assembly in the card cage PCBs.
17. Install the 17 panhead screws secur-
ing the Frontplane assembly to the
front of the Acquisition Card Cage.
Return to .Disassembly Procedure List
(1 of 2)
