4535 611 98931 iE33 Service Manual Page 361
CSIP Level 1 Cabling: OEM Cabling Diagrams

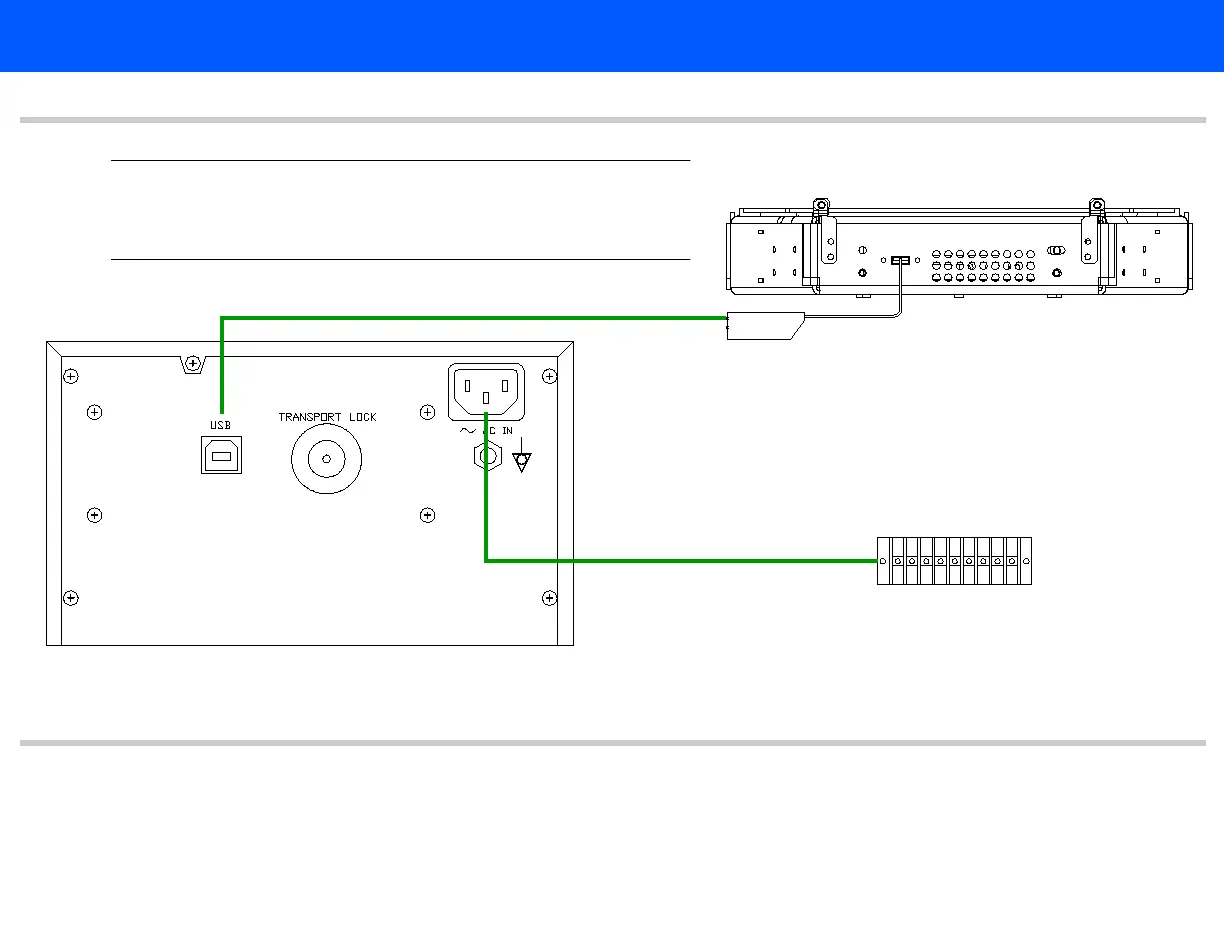

Figure 11-11 UPD-23MD Sony Digital Color Printer Cabling Diagram
AC tray
terminal block
Rear of DVD housing
453561153452
UPD-23MD printer
NOTE Do not disconnect the 453561153452 USB cable from the
system rear interface panel. If it has to be disconnected,
ensure that it gets reconnected to the same port.
453561179291
USB hub
To Next Page
