Philips iE33 - Figure 14-36 Acquisition Card Cage (Shields and Panels)

4535 611 98931 iE33 Service Manual Page 411
CSIP Level 1 Parts: Illustrations

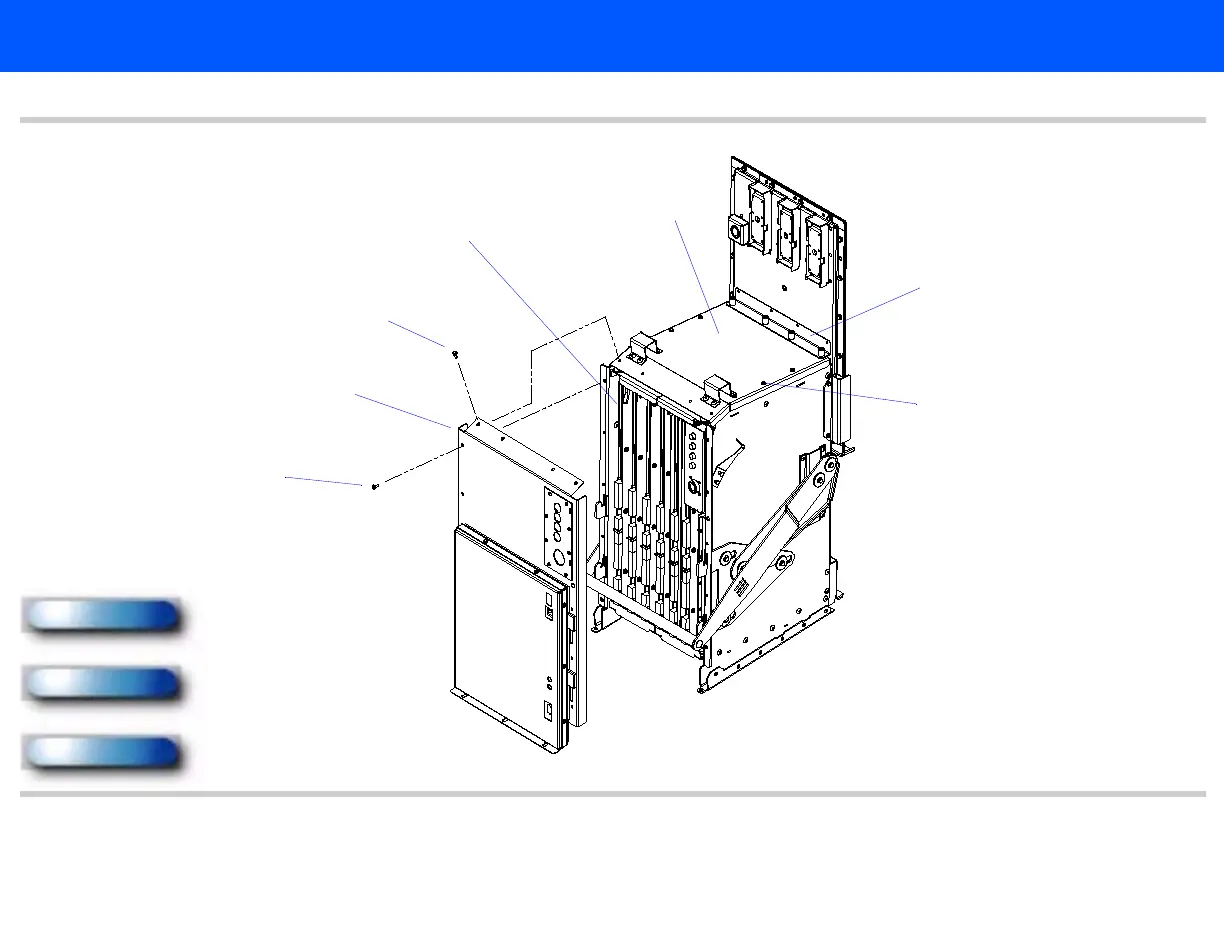

Figure 14-36 Acquisition Card Cage (Shields and Panels)
Disassembly
Frontplane assembly
See Figure 14-37
1516-0074 (4 plcs)
1065-6155-02
1516-0074 (10 plcs)
1065-6546-01
Parent View
Card cage detail
See Figure 14-38
1516-0074 (6 plcs)
System
