CSIP Level 1 Disassembly: Disassembly Procedures

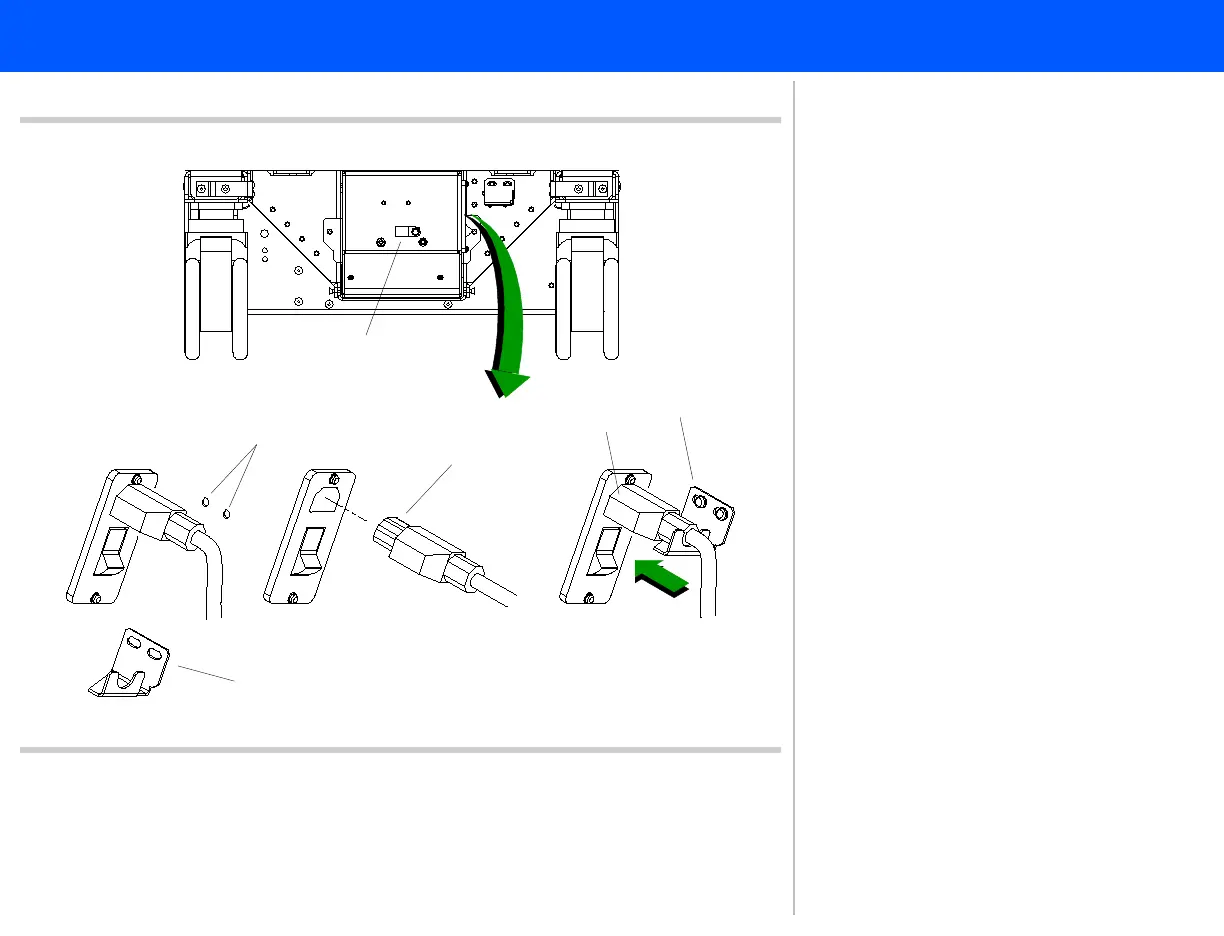

Figure 10-65 Installing the 100/120-V Power Cord
Retention bracket
100/120-V configuration
2
4
8
3
5
6
2
7
2. Remove the two panhead screws
securing the power cord retention
bracket and set the bracket aside.
3. Remove the power cord.
4. Remove the power cord clamp.
5. Insert the new power cord into the
AC receptacle.
6. Reinstall the retention bracket as
shown in Figure 10-65 for 100/120-V
systems and Figure 10-66 for 230-V
systems. Do not tighten the screws.
7. Push the retention bracket against
the power cord connector body and
tighten the screws.
8. Replace the power cord clamp.
Return to .Disassembly Procedure List
(2 of 2)
