CSIP Level 1 Disassembly: Disassembly Procedures
Fiber-Optic Keyboard Lighting

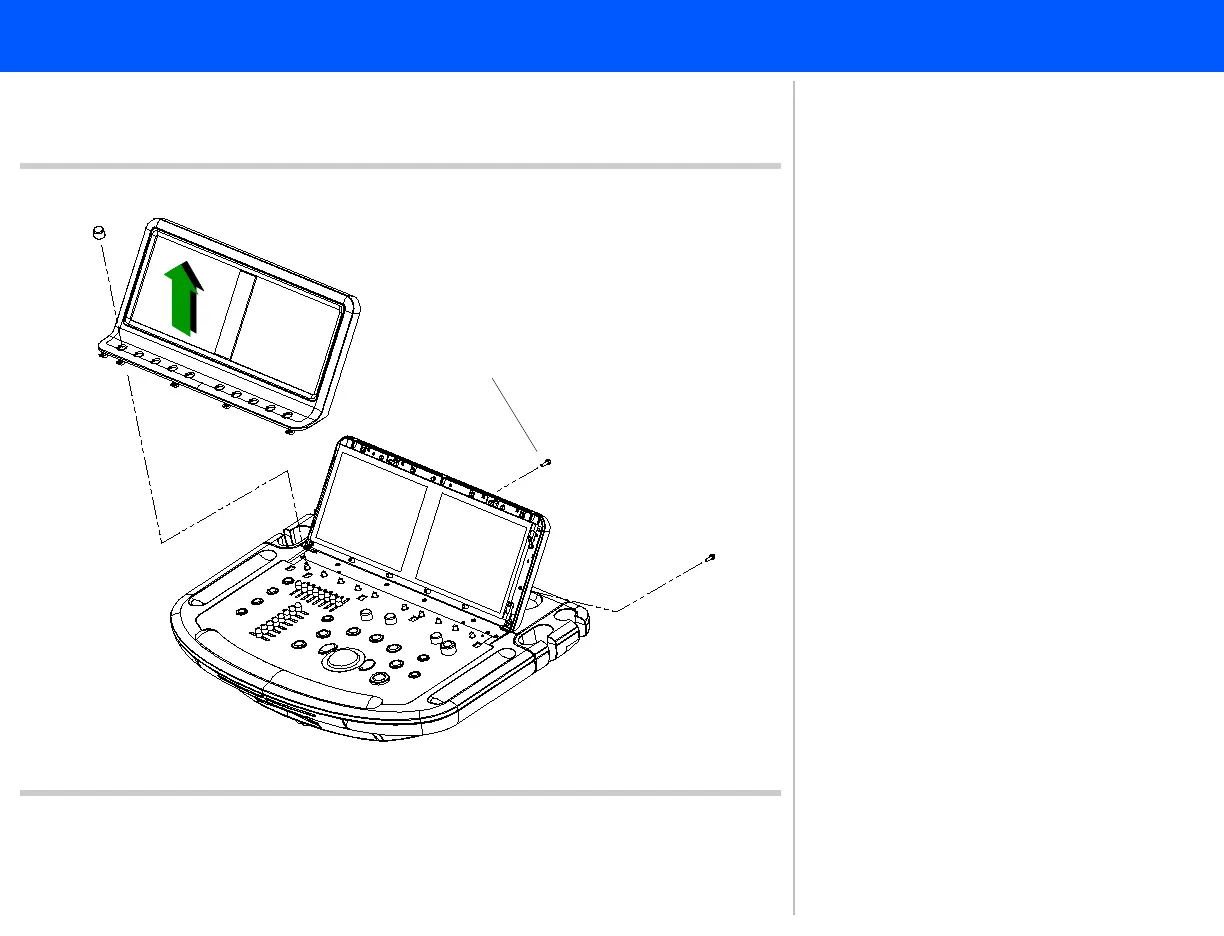

Figure 10-30 Front Touch Screen Bezel
1
2
Panhead screws (2 plcs)
3
4
➤ To remove or replace the
fiber-optic keyboard lighting
1. Remove the ten knobs covering the
touch screen bezel.
2. Remove the two panhead screws
securing the touch screen bezel and
rear cover.
3. Tilt the touch screen bezel forward
and lift it off the control panel.
4. Remove the rear touch screen bezel
and set it aside.
Return to .Disassembly Procedure List
(1 of 2)
