4535 611 989314730-0047-01iE33 Service Manual Page 190
CSIP Level 1 Installation: Installation Procedures

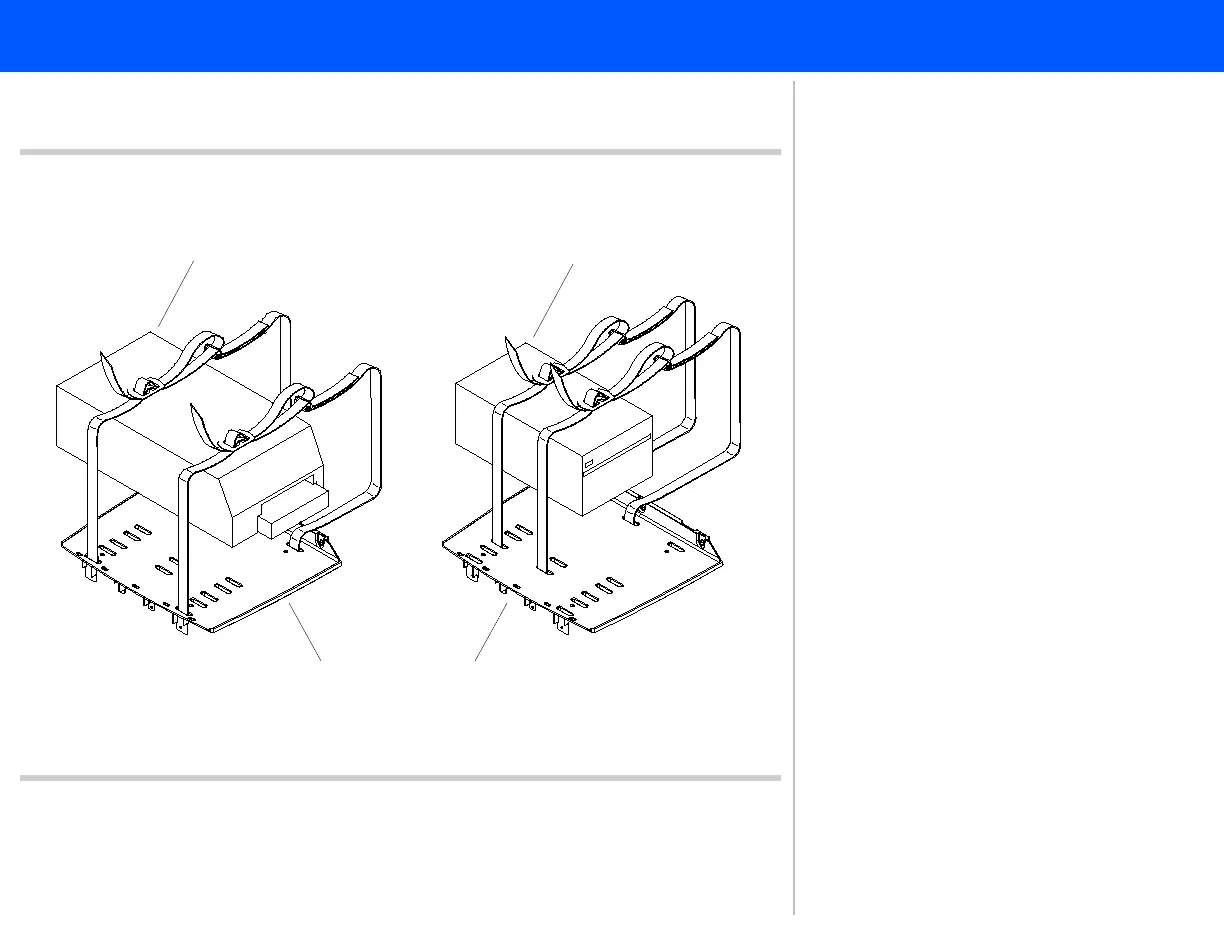

Figure 5-51 Strapping the Printer to the Upper OEM
Shelf
UPD-23MD Sony
digital color printer
UP-D895MD Sony
digital B/W printer
Upper OEM shelf
5
5
5. Strap the OEM to the upper shelf
using the appropriate set of slots,
depending on the size of the printer
you are installing.
Return to Installation Procedure List.
