4535 611 989314730-0047-01iE33 Service Manual Page 287
CSIP Level 1 Disassembly: Disassembly Procedures
Touch Screen Assembly

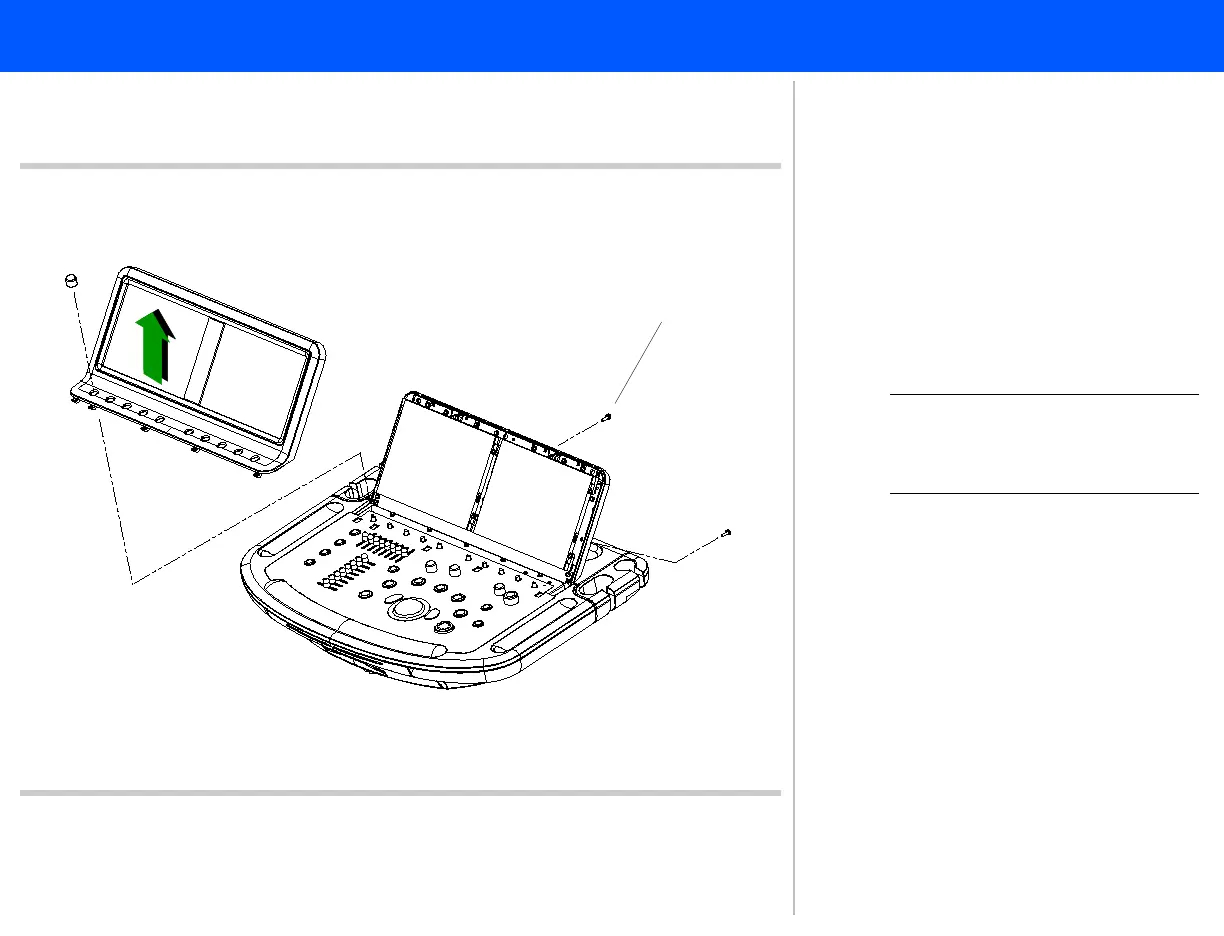

Figure 10-27 Touch Screen Bezel
Panhead screws (2 plcs)
1
2
3
➤ To remove or replace the touch
screen assembly
1. Remove the ten knobs covering the
touch screen bezel.
2. Remove the two panhead screws
securing the touch screen bezel.
NOTE The two screws are at the mid-
dle rear of the touch screen
assembly.
3. Tilt the touch screen bezel forward
and lift it off the control panel.
Return to .Disassembly Procedure List
(1 of 2)
