Philips iE33 - Figure 10-38 Disconnecting the DVD Drive Cables

4535 611 989314730-0047-01iE33 Service Manual Page 298
CSIP Level 1 Disassembly: Disassembly Procedures

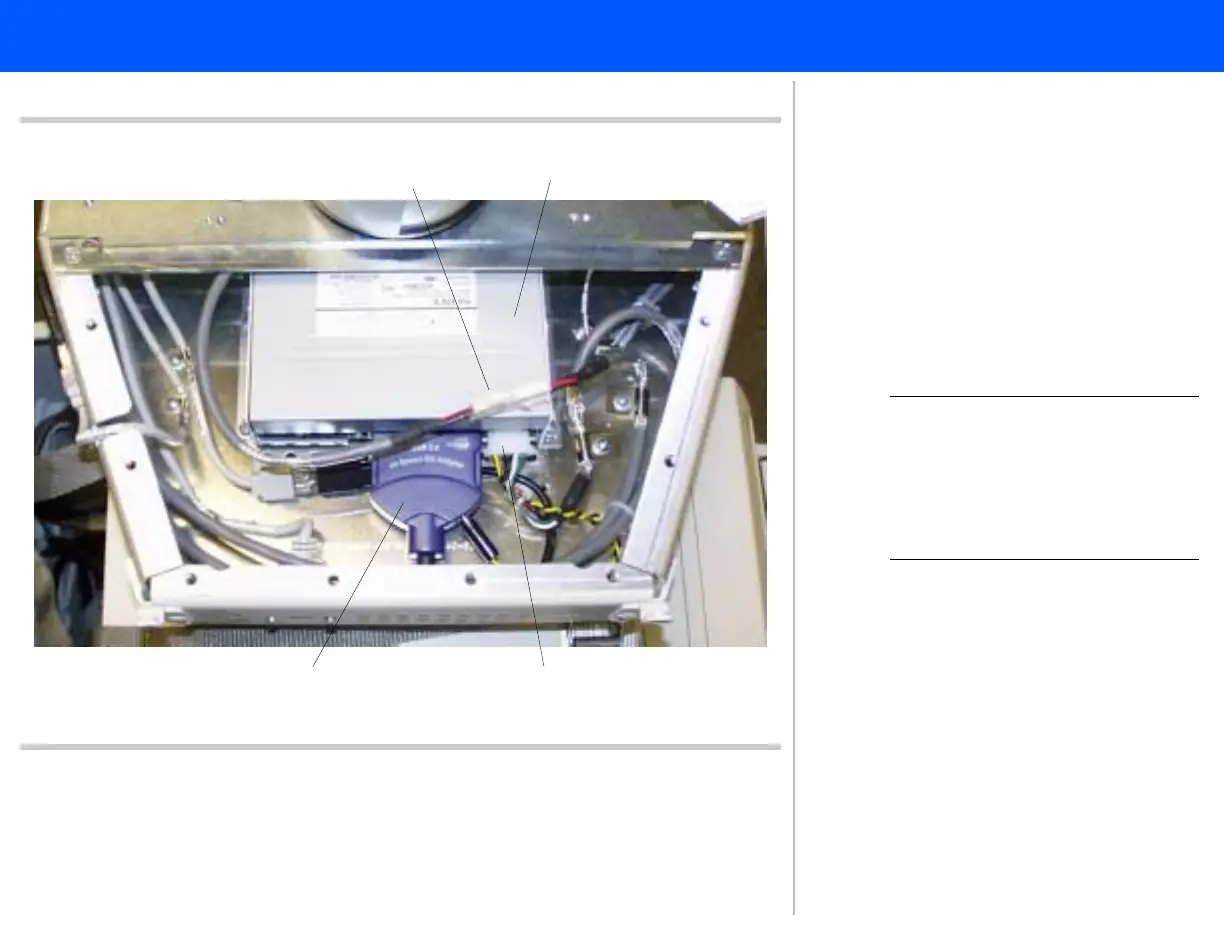

Figure 10-38 Disconnecting the DVD Drive Cables
Monitor cable connection
Signal cable Power cable
DVD drive assembly
10
99
9. Disconnect the signal cable and the
power cable from the back of the
DVD drive.
10. If the monitor cable interferes with
removal of the DVD drive assembly,
disconnect it.
NOTE It may be necessary to move or
disconnect other cabling within
the drive housing before
removing the DVD drive
assembly.
Return to .Disassembly Procedure List
