4535 611 98931 iE33 Service Manual Page 353
CSIP Level 1 Cabling: System Connector Illustrations

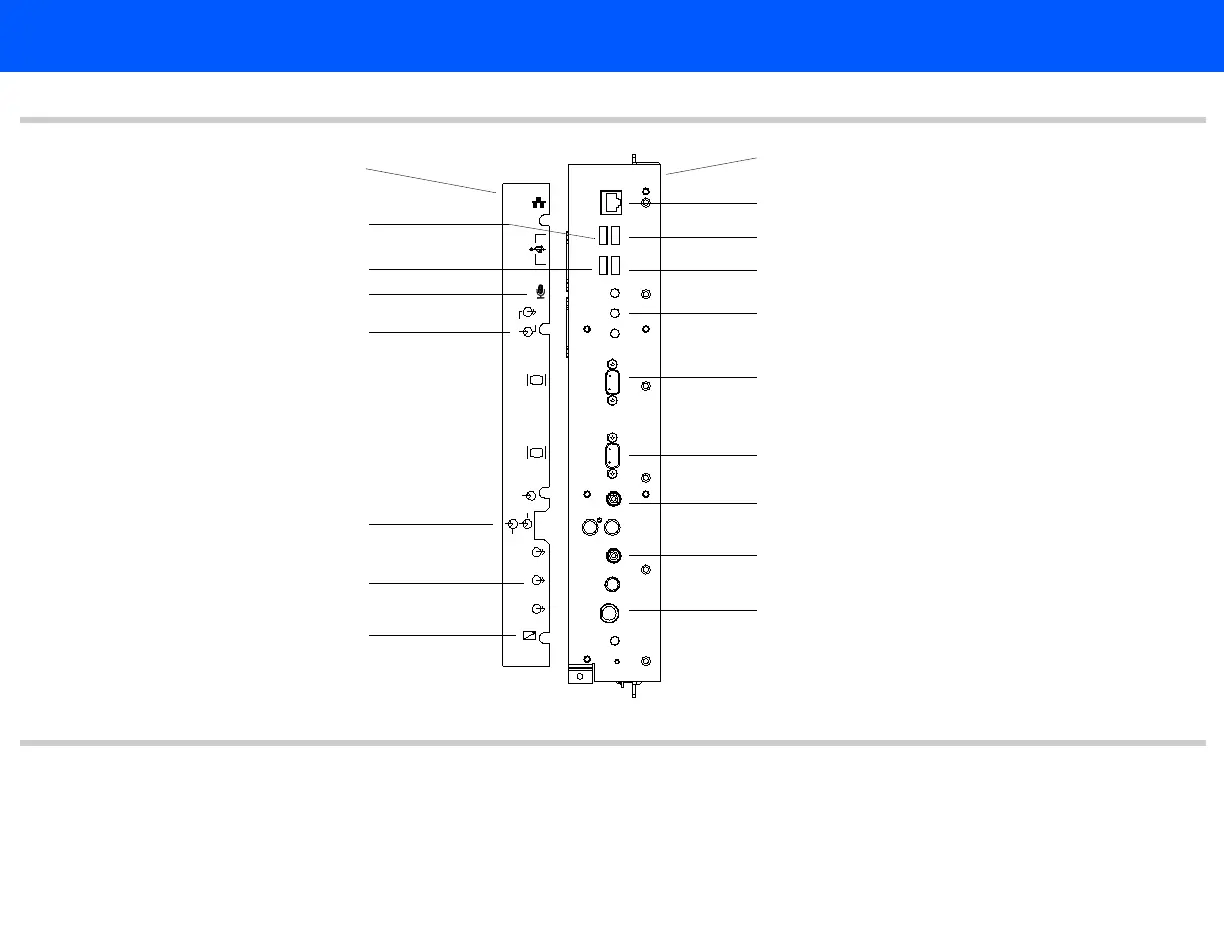

Figure 11-3 Rear Interface Panel Connector Locations (AVIO-RIP)
P21, E-NET
P19, Bluetooth (1.1 USB)
P17, VCR OUT
P15, Video monitor
P14, EXT (external monitor)
P13, C IN (composite in)
P11, C OUT (composite out)
P9, B/W OUT (B&W video out)
OEM 1 (1.1 USB), P20
MIC, (Microphone) P18
VCR IN, P16
DUAL SVID IN, P12
SVID OUT, P10
Print STAT, P8
AVIO-Rear Interface Panel
AVIO-RIP overlay
AUDIO
AUX
COMP
VIDEO
S-VIDEO
AUX
S-VIDEO
COMP
VIDEO
S-VIDEO
BLK/WHT
VIDEO
REMOTE
OEM 2 (1.1 USB)
Modem (1.1 USB)
