4535 611 98931 iE33 Service Manual Page 429
CSIP Level 1 Parts: Illustrations

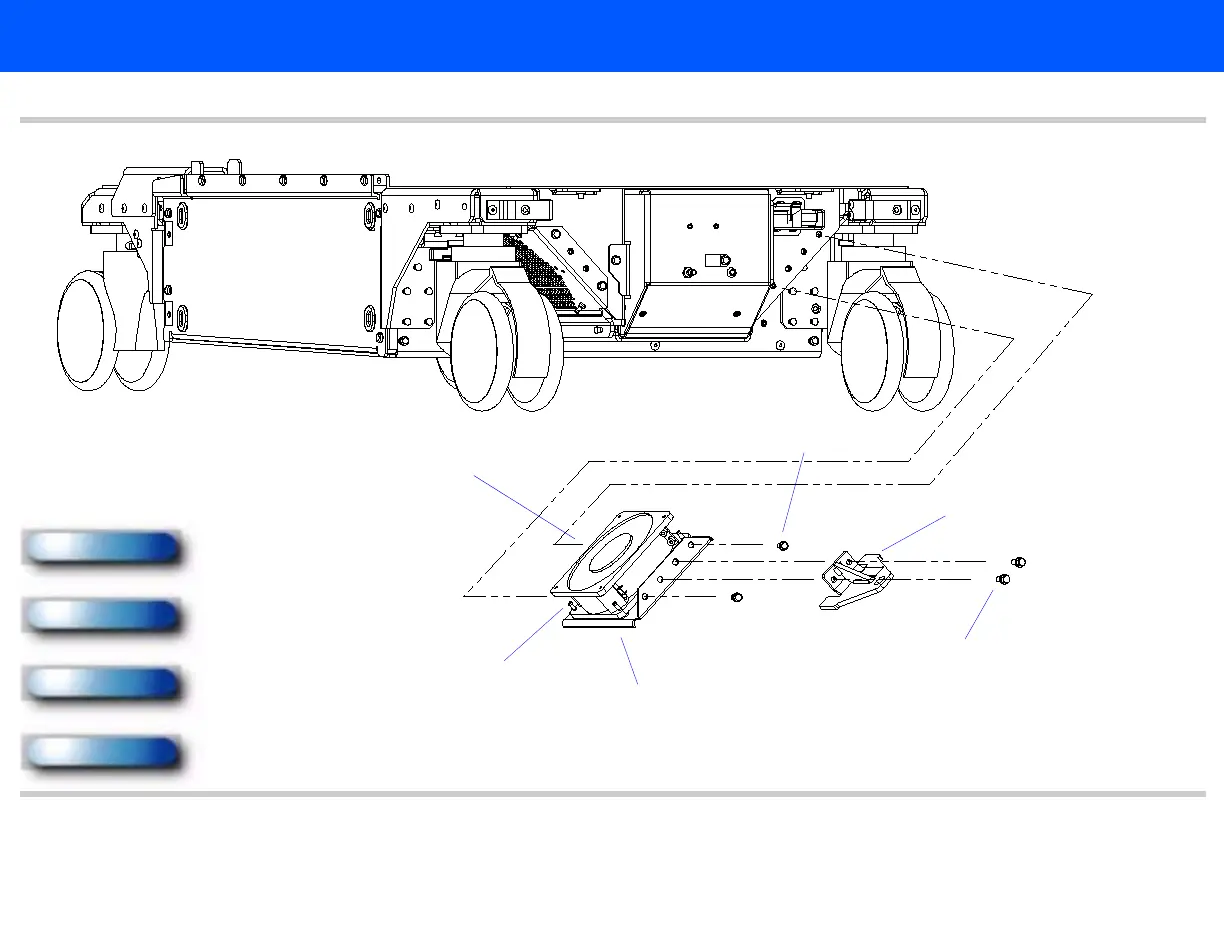

Figure 14-54 Rear Cooling Fans and Shipping Brackets
Rear cooling fan assembly
3500-3701-01
2100-1910-01 (2 plcs)
1065-6559-02 (2 plcs)
Parent View
Disassembly
2950-1611-01 (4 plcs each fan)
453561160051 (2 plcs)
1518-0041 (4 plcs each fan)
1530-0088-01 (2 plcs each fan)
1530-0157-01 (2 plcs each fan)
Installation
System
To Next Page
