4535 611 989314730-0047-01iE33 Service Manual Page 172
CSIP Level 1 Installation: Installation Procedures

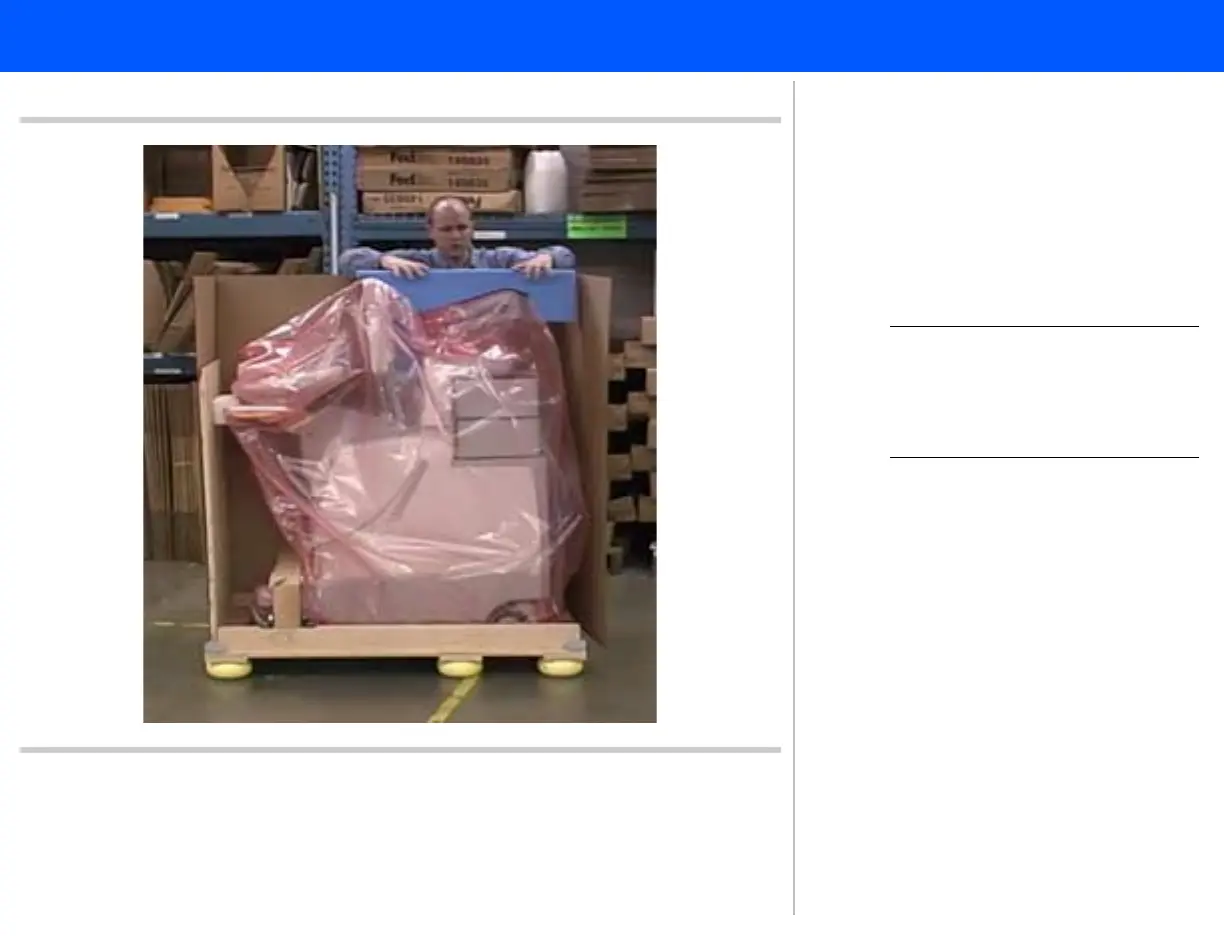

Figure 5-33 Placing the Monitor Arm Brace
26. Place the foam monitor arm brace
over the monitor arm lengthwise
between the top system support
braces.
NOTE The corrugated wrap has been
removed in this step for moni-
tor arm brace placement clar-
ity.
Return to Installation Procedure List.
