4535 611 989314730-0047-01iE33 Service Manual Page 341
CSIP Level 1 Disassembly: Disassembly Procedures

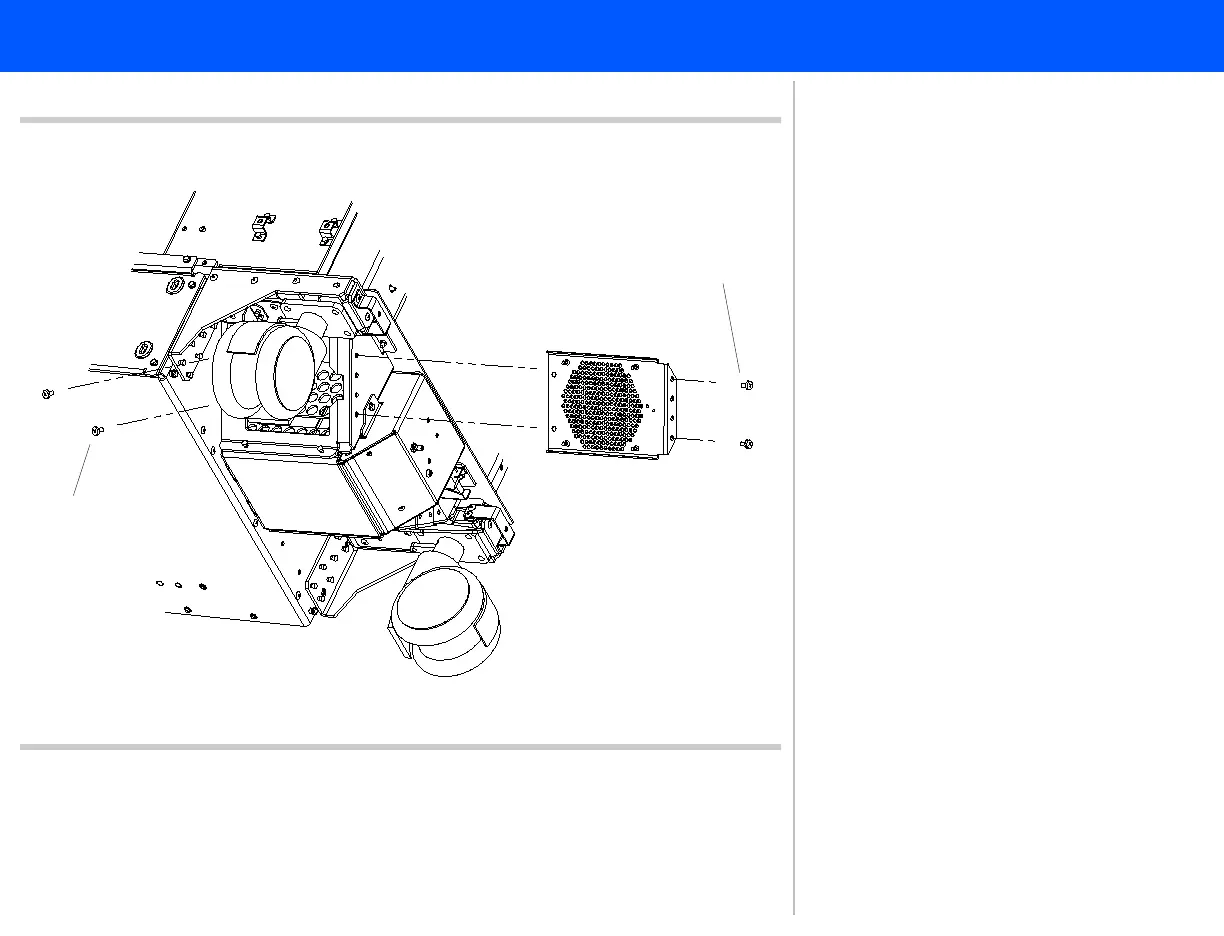

Figure 10-81 Rear Cooling Fan Assemblies
Panhead screws (2 plcs)
Panhead
screws
(2 plcs)
Rear of system
2
5
4
3
2. Remove the two rear panhead
screws securing the rear side of the
fan assembly.
3. Shift the system so that the casters
turn sideways, allowing access to the
two side panhead screws.
4. Support the fan assembly with your
free hand and remove the two side
panhead screws.
5. Lower the fan assembly enough so
you can disconnect the fan cable, and
then disconnect the cable. The rear
cooling fan assembly is now com-
pletely disconnected.
Return to .Disassembly Procedure List
(2 of 2)
