4535 611 989314730-0047-01iE33 Service Manual Page 265
CSIP Level 1 Disassembly: Disassembly Procedures

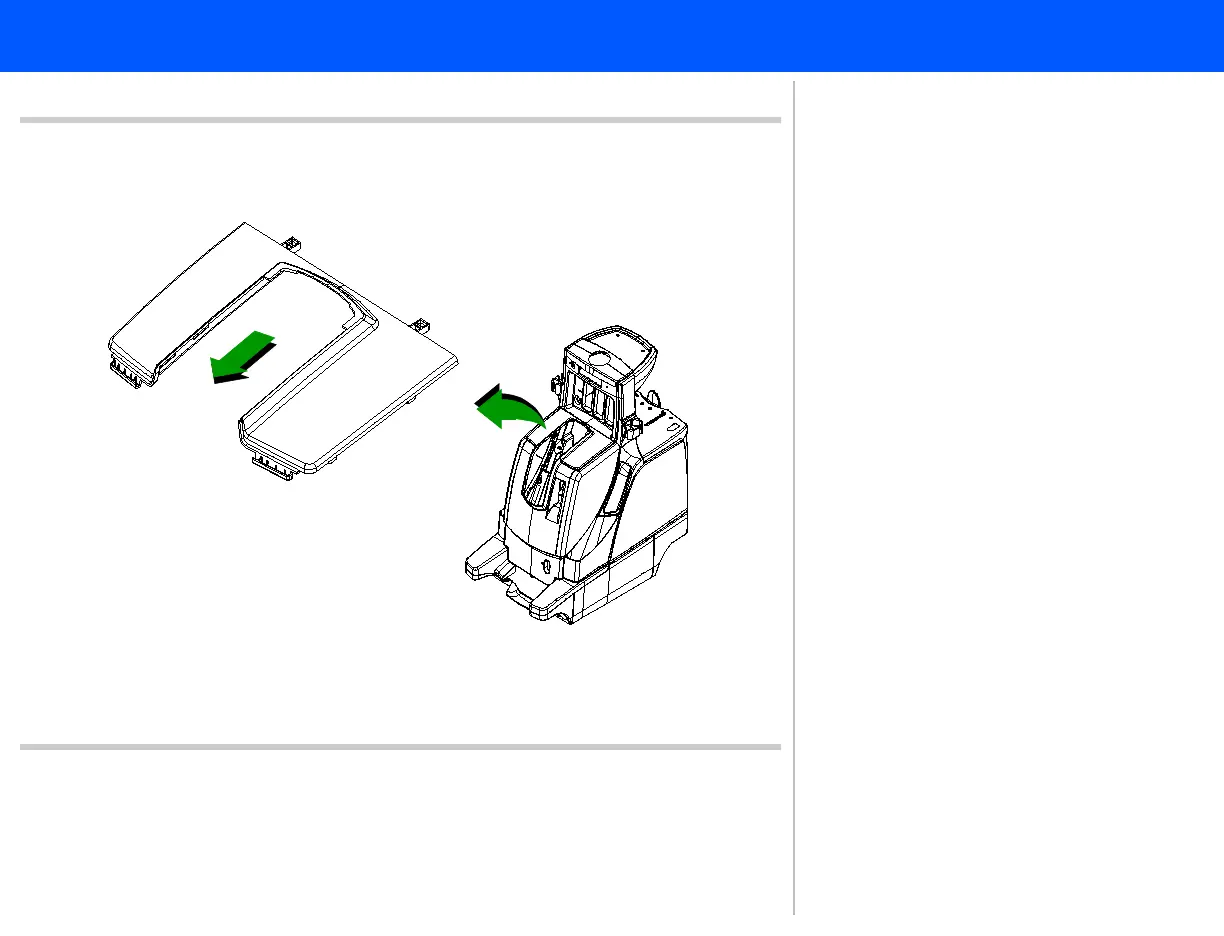

Figure 10-5 Top Control Panel Articulation Enclosure
5
5. Slide forward and remove the top
enclosure that surrounds the control
panel articulation mechanism. There
are no screws securing this cover to
the frame. It is held in place when
the front panel enclosure is installed.
Return to .Disassembly Procedure List
(1 of 2)
