CSIP Level 1 Disassembly: Disassembly Procedures

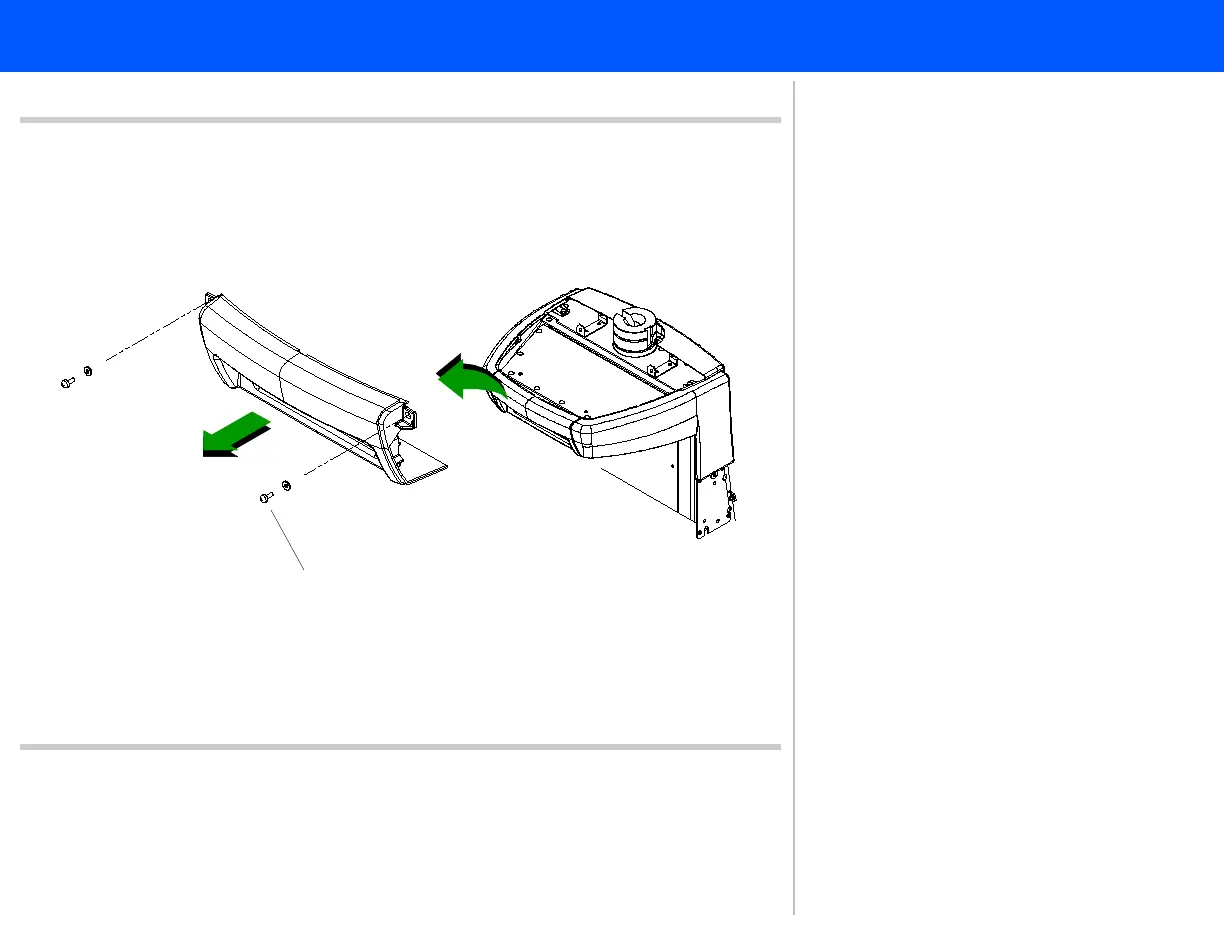

Figure 10-22 Rear Column Disk Bay Enclosure
Panhead screws (2 plcs)
45
44
44. Remove the two panhead screws
securing the rear column disk bay
enclosure.
45. Slide the enclosure off the disk bay
housing.
Return to .Disassembly Procedure List
