Philips iE33 - Figure 10-51 Control Panel Articulation Arm Beard Enclosure Assembly

4535 611 989314730-0047-01iE33 Service Manual Page 311
CSIP Level 1 Disassembly: Disassembly Procedures

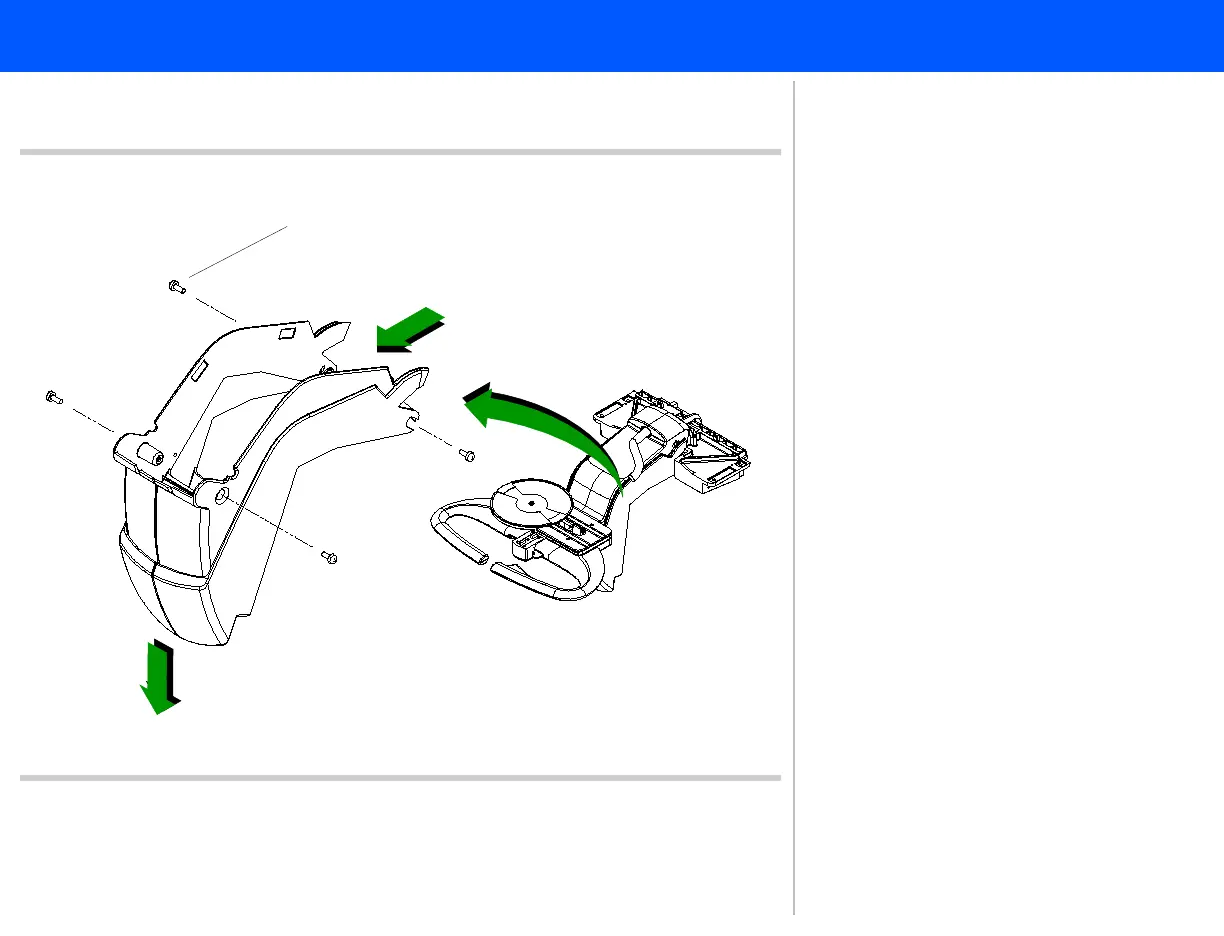

Figure 10-51 Control Panel Articulation Arm Beard
Enclosure Assembly
Panhead screws (4 plcs)
6
8
7
6. Remove the four panhead screws
securing the articulation arm beard
enclosure assembly.
7. Rotate the front side of the enclo-
sure assembly downward.
8. Then slide the enclosure assembly
forward to remove it. Set it aside.
Return to .Disassembly Procedure List
