4535 611 989314730-0047-01iE33 Service Manual Page 330
CSIP Level 1 Disassembly: Disassembly Procedures
Acquisition Power Supply and HV Switcher

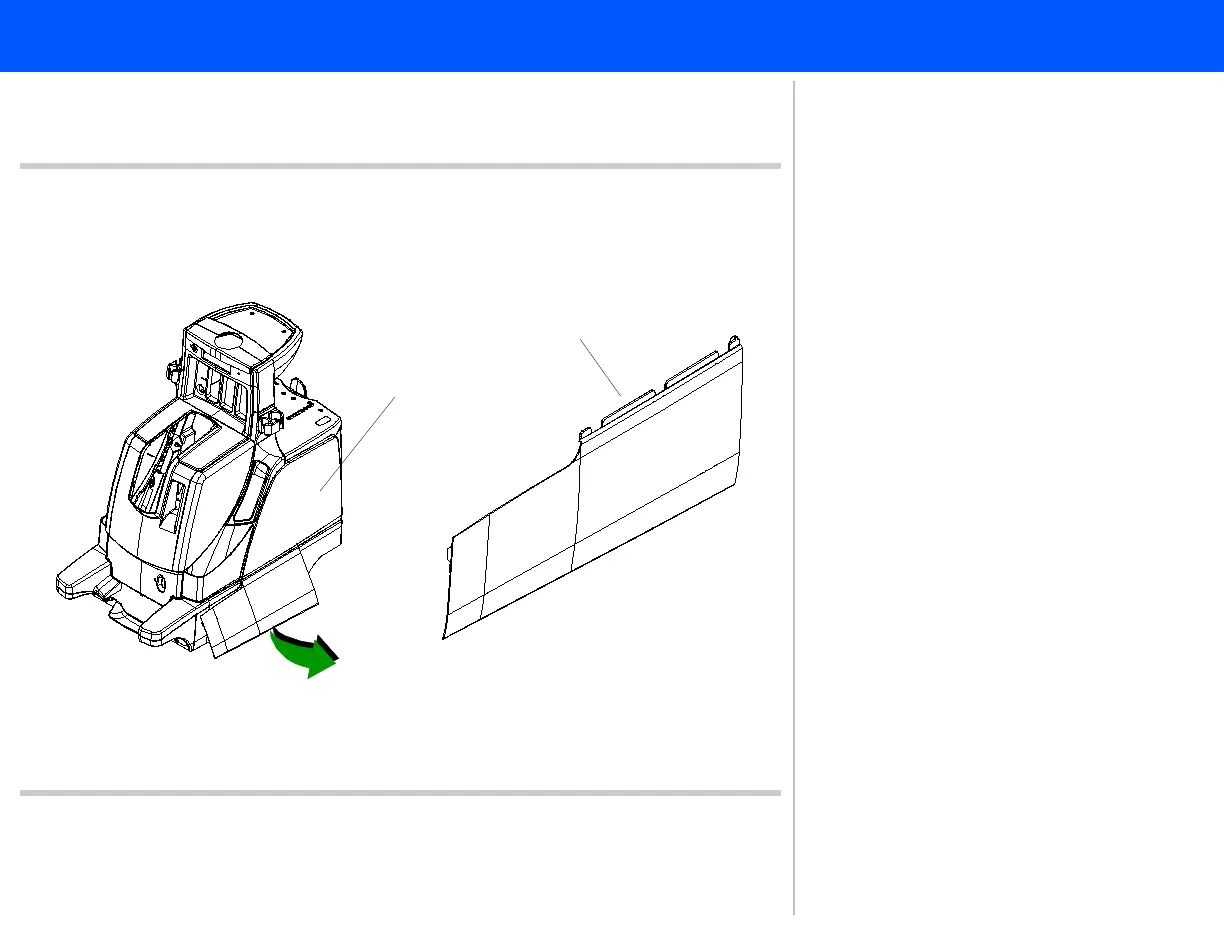

Figure 10-70 Power Supply Cover Enclosure
Cover tabs
Right side panel
Right side of system
1
2
➤ To remove or replace the Acqui-
sition Power Supply and HV
switcher
1. The power supply cover snaps into
place and no screws are required. To
remove the power supply cover,
grasp the bottom and gently pull out-
ward until it releases.
2. Pull the cover downward to slide the
cover tabs out of the right side panel.
Return to .Disassembly Procedure List
(2 of 2)
