4535 611 989314730-0047-01iE33 Service Manual Page 285
CSIP Level 1 Disassembly: Disassembly Procedures

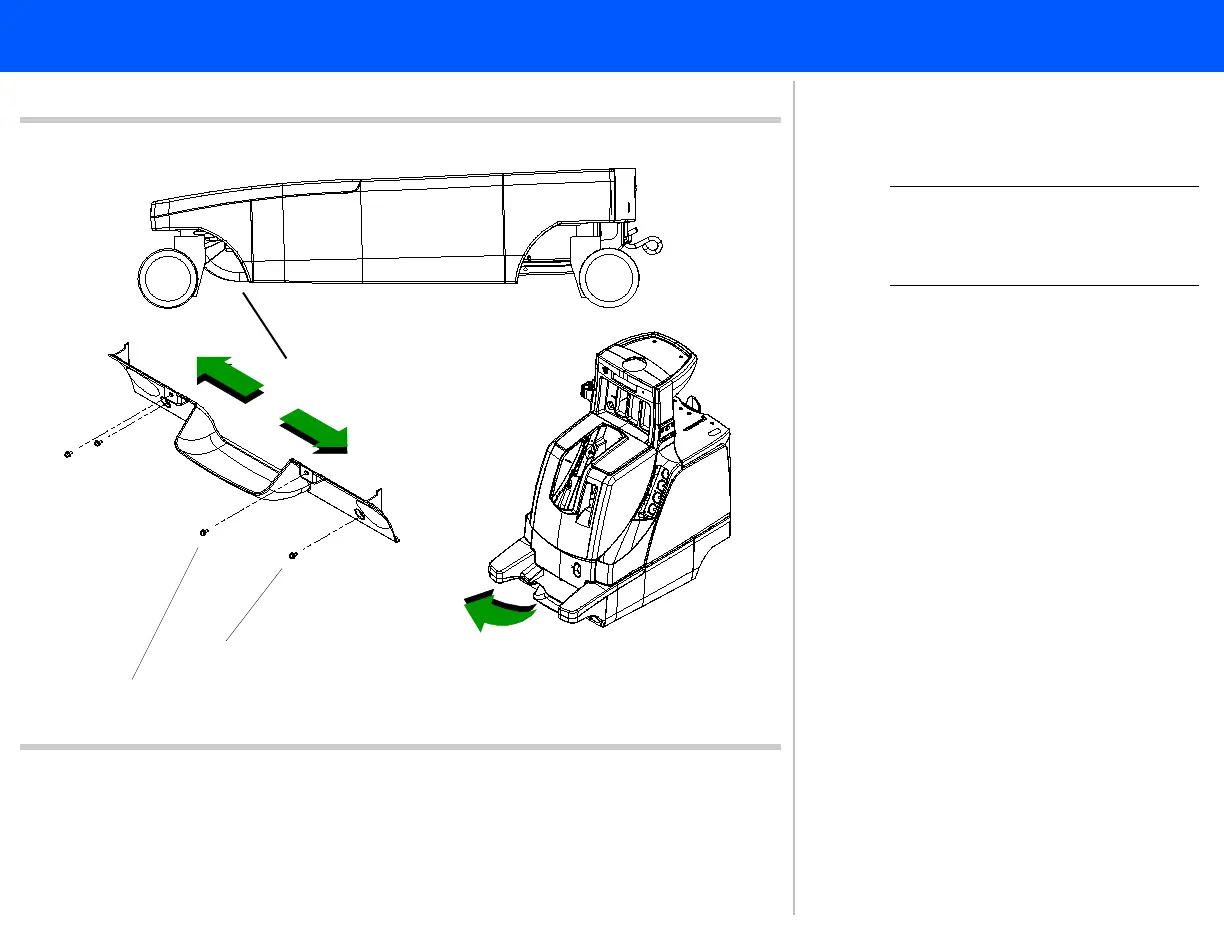

Figure 10-25 Mud Plate Enclosure
Long panhead screws (2 plcs)
Short panhead screws (2 plcs)
48
50
49
49
NOTE No other enclosure removal is
necessary to remove the mud
plate enclosure.
48. Rotate and forward face both front
casters as shown in Figure 10-25.
This enables access to the two out-
side screws of the mud plate enclo-
sure and allows room to remove the
enclosure after the screws are
removed.
49. Remove the four panhead screws
securing the mud plate enclosure.
A long-shaft screwdriver is recom-
mended. The two inside screws are
longer in length than the two outside
screws.
50. Lower the mud plate enclosure to
the floor and slide it out behind
either of the two front casters.
Return to .Disassembly Procedure List
(1 of 2)
