4535 611 989314730-0047-01iE33 Service Manual Page 300
CSIP Level 1 Disassembly: Disassembly Procedures
Speaker Assemblies

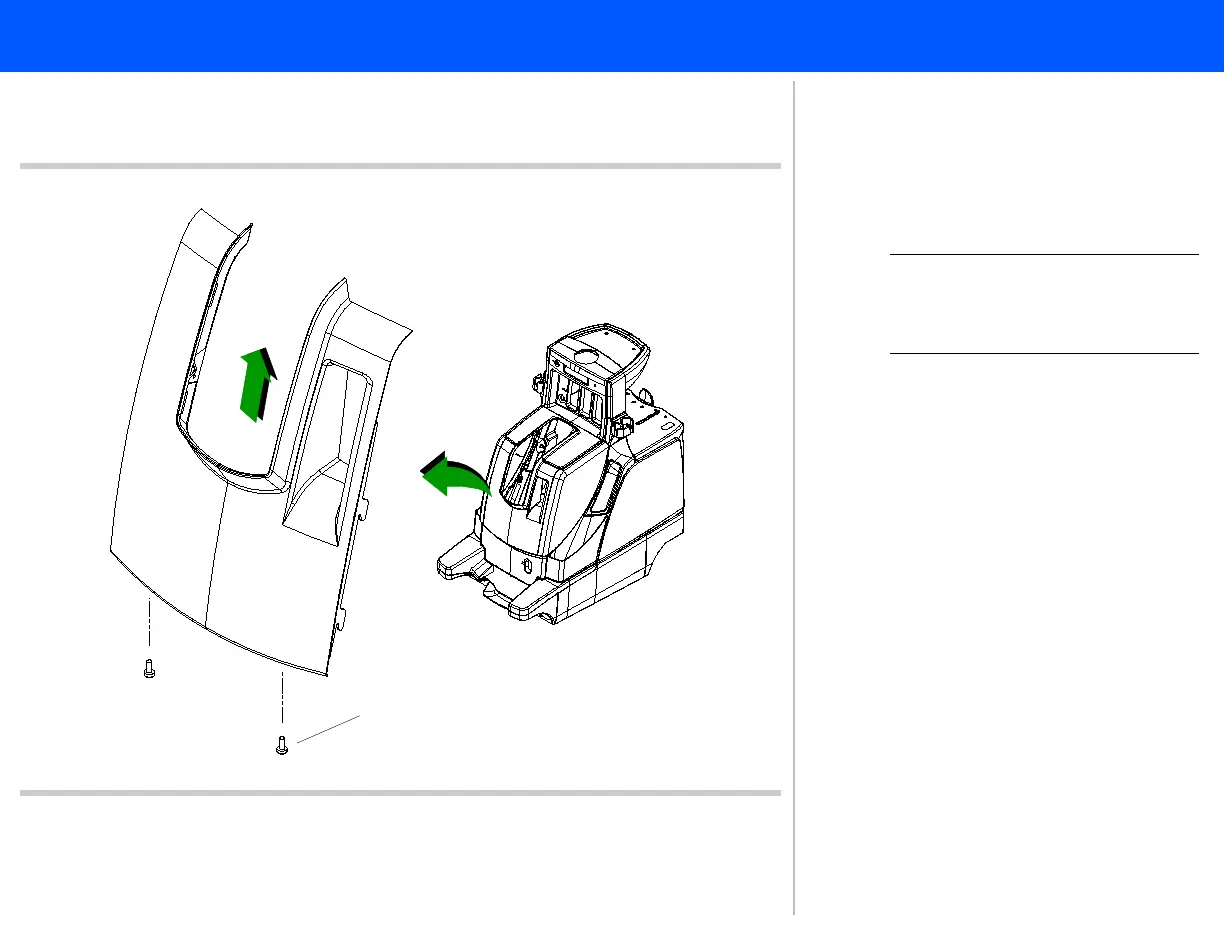

Figure 10-40 Upper Front Panel Enclosure
Panhead screws (2 plcs)
1
2
➤ To remove or replace the
speaker assemblies
NOTE This procedure applies to both
the left or the right speaker
assembly removal.
1. Remove the two panhead screws
securing the upper front panel enclo-
sure.
2. Slide the upper front panel enclosure
upward to remove it and set it aside.
Return to .Disassembly Procedure List
(1 of 2)
