4535 611 989314730-0047-01iE33 Service Manual Page 310
CSIP Level 1 Disassembly: Disassembly Procedures

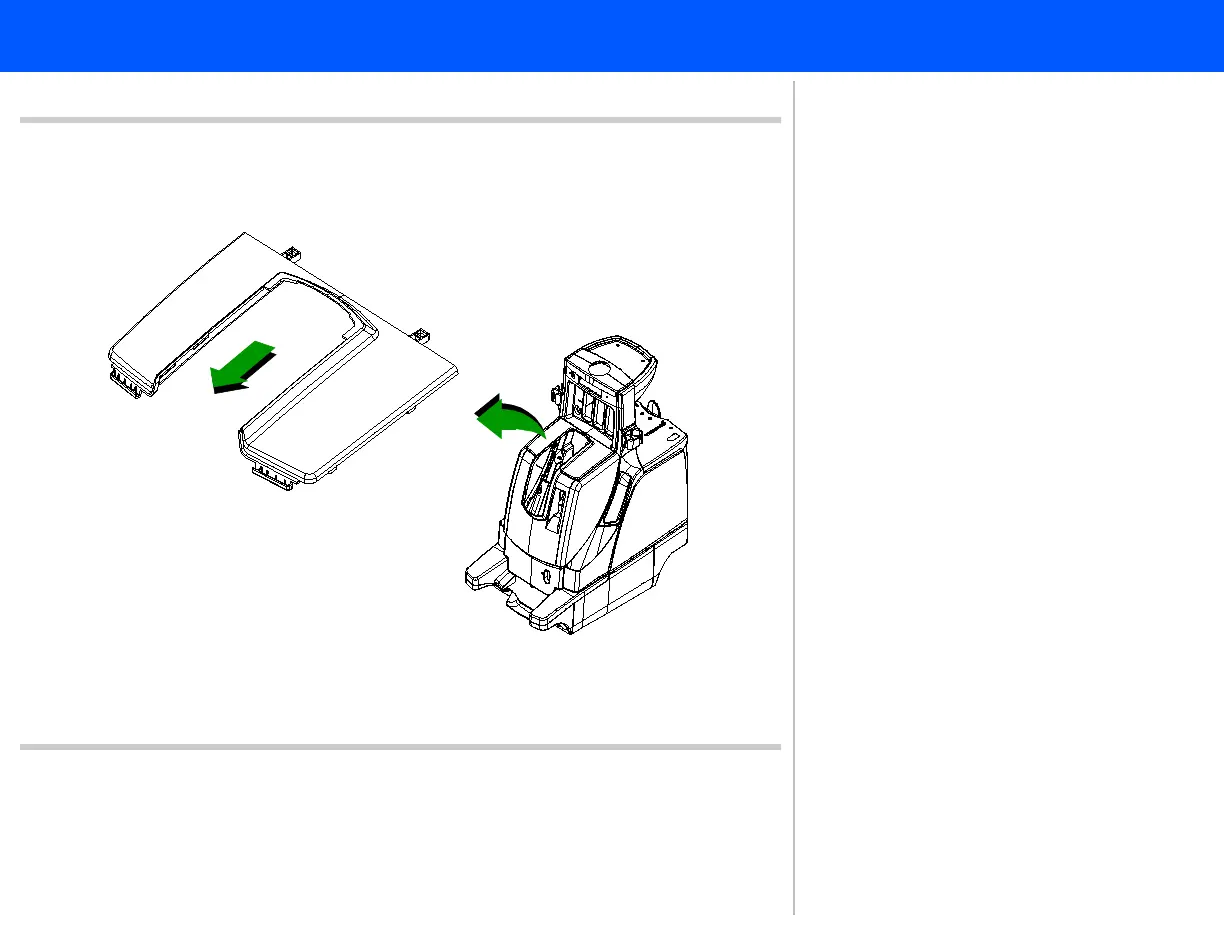

Figure 10-50 Top Control Panel Articulation Enclosure
5
5. Slide forward and remove the top
enclosure that surrounds the control
panel articulation and set it aside.
There are no screws securing this
cover to the frame. It is held in place
when the front panel enclosure is
installed.
Return to .Disassembly Procedure List
