4535 611 989314730-0047-01iE33 Service Manual Page 342
CSIP Level 1 Disassembly: Disassembly Procedures
Caster, Left Rear (Free-Swivel)

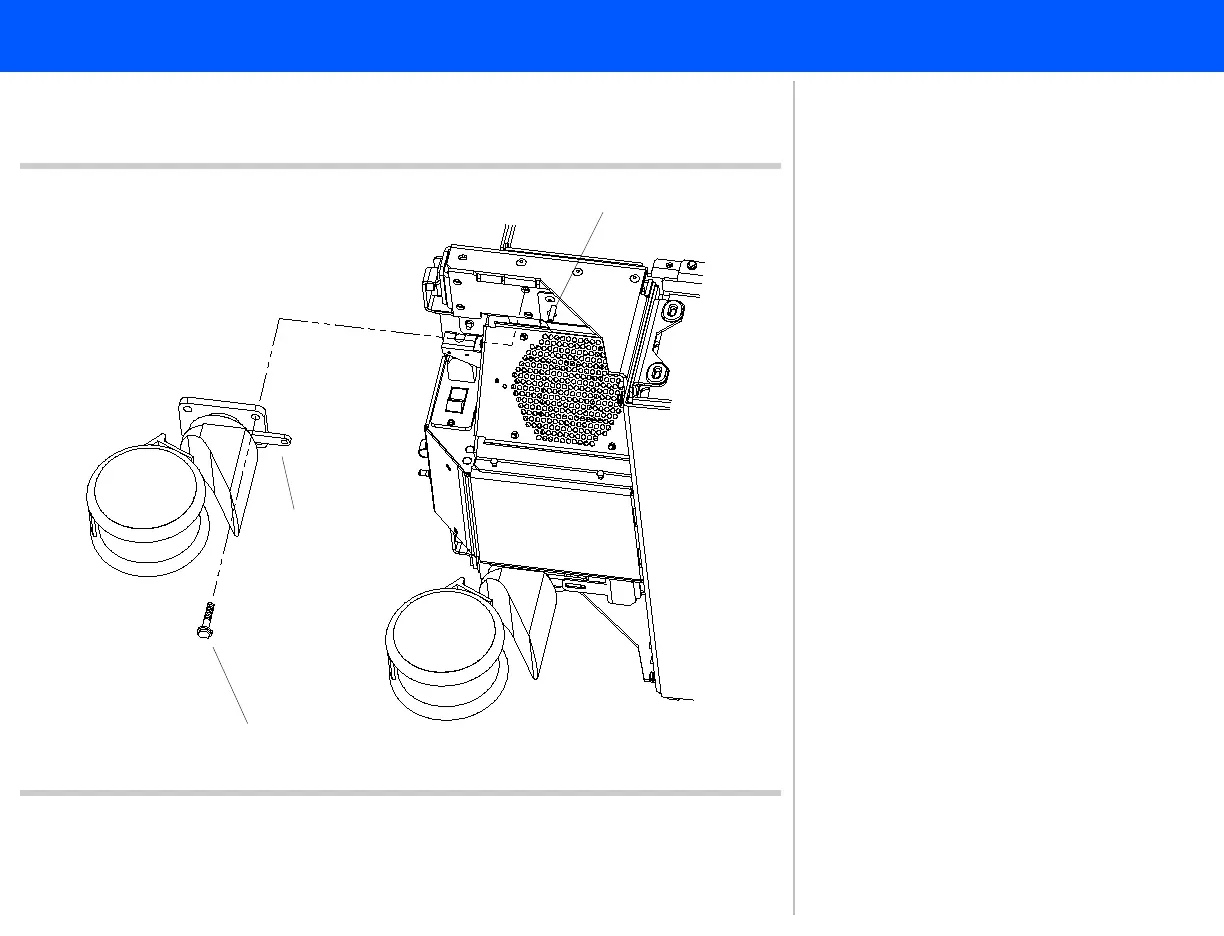

Figure 10-82 Left Rear Caster
Hexhead bolt (4 plcs)
Linkage lever
Standoff pin
Left caster
1
➤ To remove or replace the left
rear caster
1. Remove the four hexhead bolts
securing the caster to the cart rail.
Return to .Disassembly Procedure List
(2 of 2)
To Next Page
