4535 611 989314730-0047-01iE33 Service Manual Page 336
CSIP Level 1 Disassembly: Disassembly Procedures

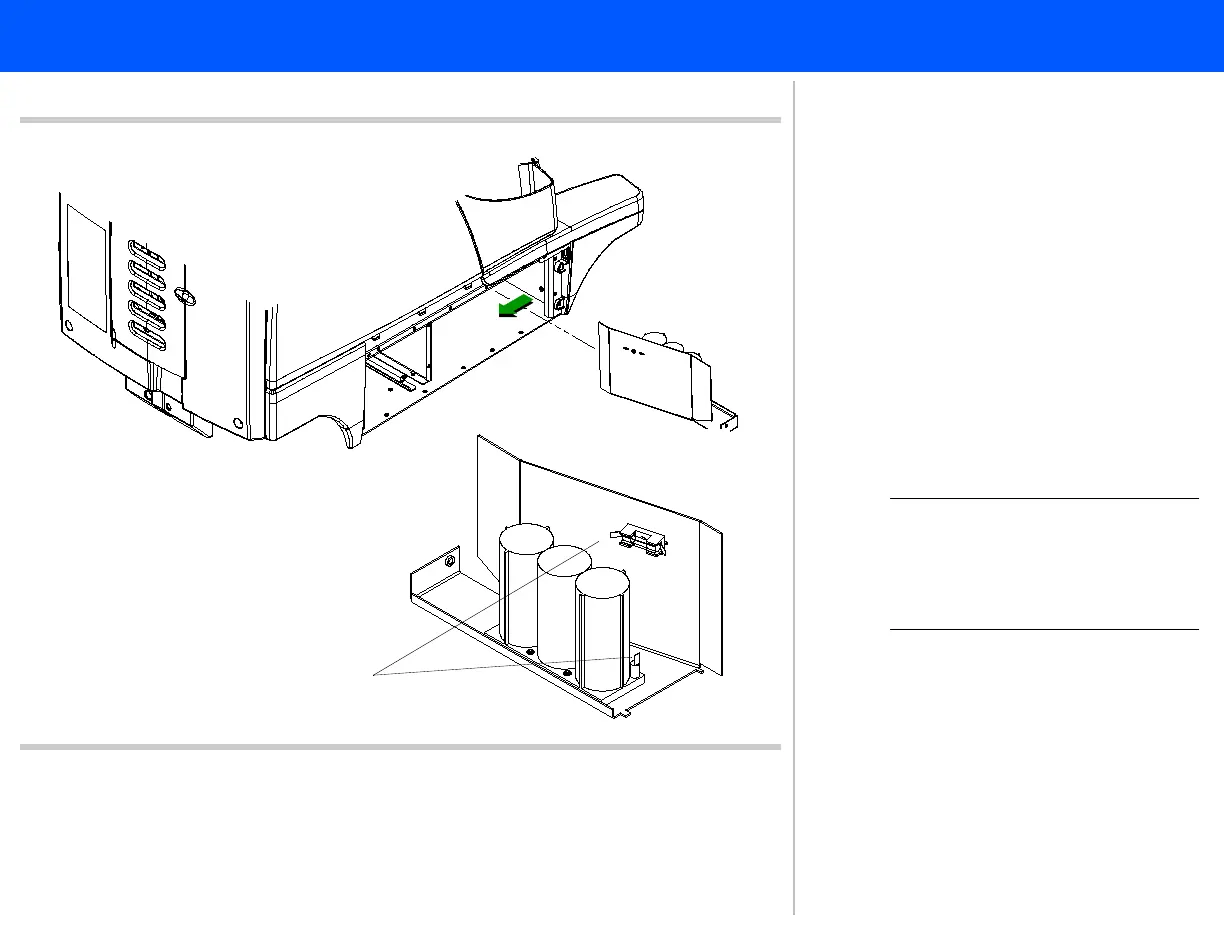

Figure 10-76 Battery Tray
Cable connections
8
8
9
8. To remove the battery tray, slide it
to the left to clear the cart frame
corner upright.
9. Disconnect the two cable connec-
tions to the battery and the two
connections to the fuse holder. The
battery tray assembly is now com-
pletely disconnected.
NOTE Individual batteries are not to
be replaced in the field. Return
all assemblies containing bat-
teries to Bothell.
Return to .Disassembly Procedure List
(2 of 2)
