4535 611 98931 iE33 Service Manual Page 359
CSIP Level 1 Cabling: OEM Cabling Diagrams
OEM Cabling
Diagrams
OEM cabling diagrams are provided in Figure 11-9 through Figure 11-11.

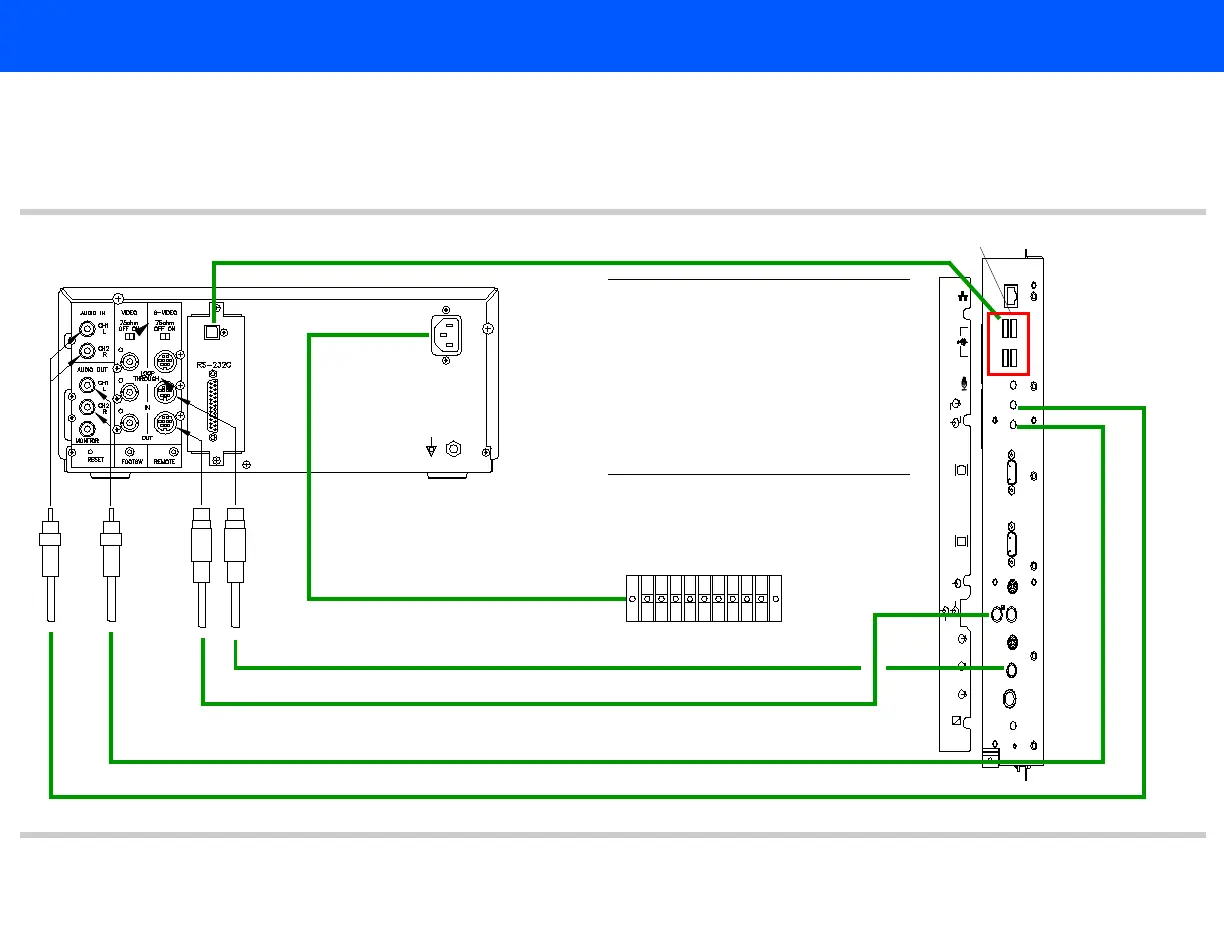

Figure 11-9 HS-MD3000UA/EA Mitsubishi VCR Cabling Diagram
iE33 rear
panel
453561182511
453561182641
VCR AUDIO OUT
VCR AUDIO IN
P16
P17
P12
P10
DUAL SVID IN
SVID OUT
453561153452
453561179291
AC tray
terminal block
NOTE Do not disconnect the
453561153452 USB cable
from the system rear inter-
face panel. If it has to be dis-
connected, ensure that it gets
reconnected to the same port.
453561182511
453561182641
HS-MD3000UA/EA VCR
See Figure 11-4 for USB configuration
To Next Page
