4535 611 989314730-0047-01iE33 Service Manual Page 316
CSIP Level 1 Disassembly: Disassembly Procedures

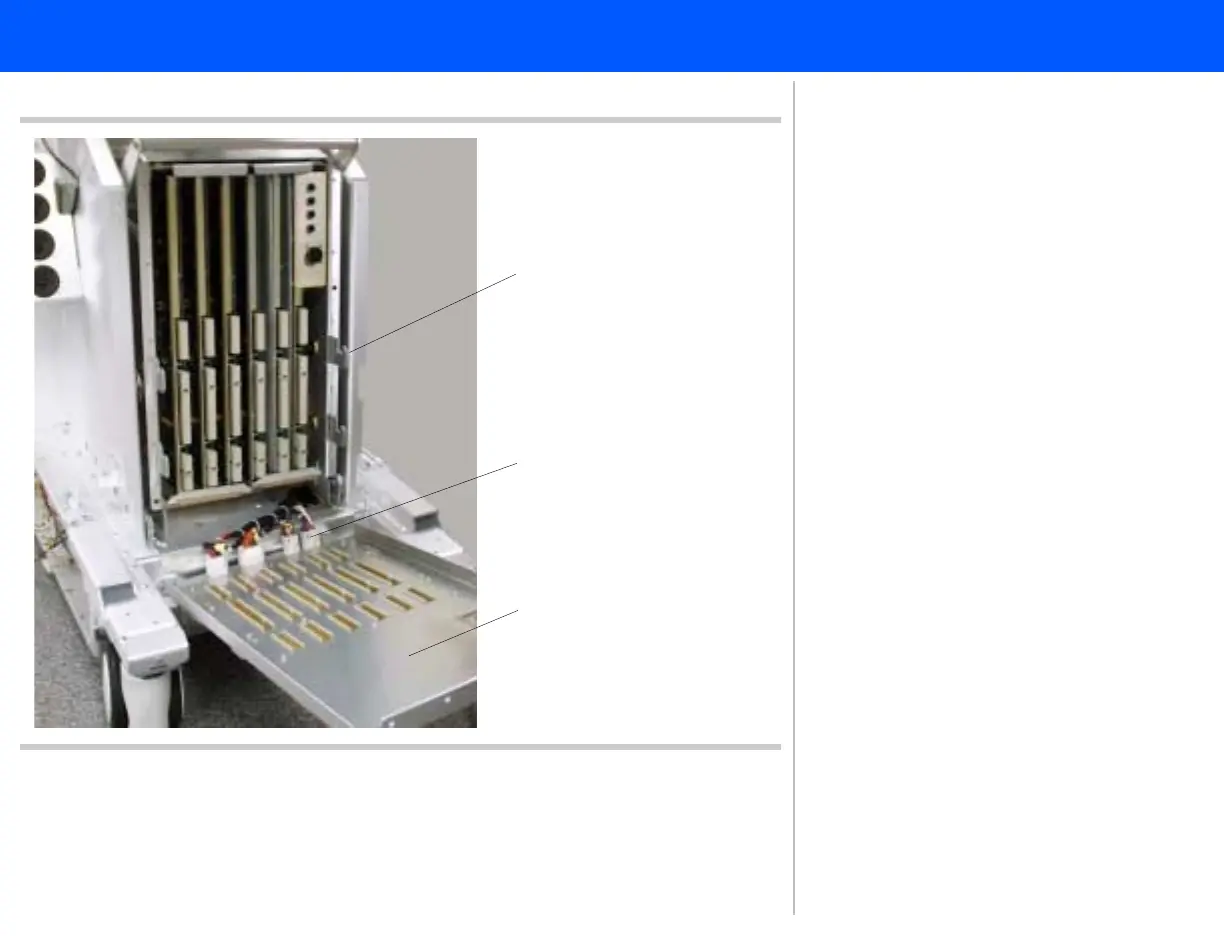

Figure 10-56 Uncabling the Frontplane Assembly
Hanger bracket
Power connections
Frontplane assembly
12
14
13
12. Gently lift the Frontplane assembly
up and off the four hanger brackets.
13. Tilt the top of the Frontplane assem-
bly toward you and lower it until it
rests on the static mat.
14. Disconnect the four power cable
connections. The Frontplane assem-
bly is now completely disconnected.
Return to .Disassembly Procedure List
(1 of 2)
