4535 611 989314730-0047-01iE33 Service Manual Page 337
CSIP Level 1 Disassembly: Disassembly Procedures
Filter Tray Cooling Fans

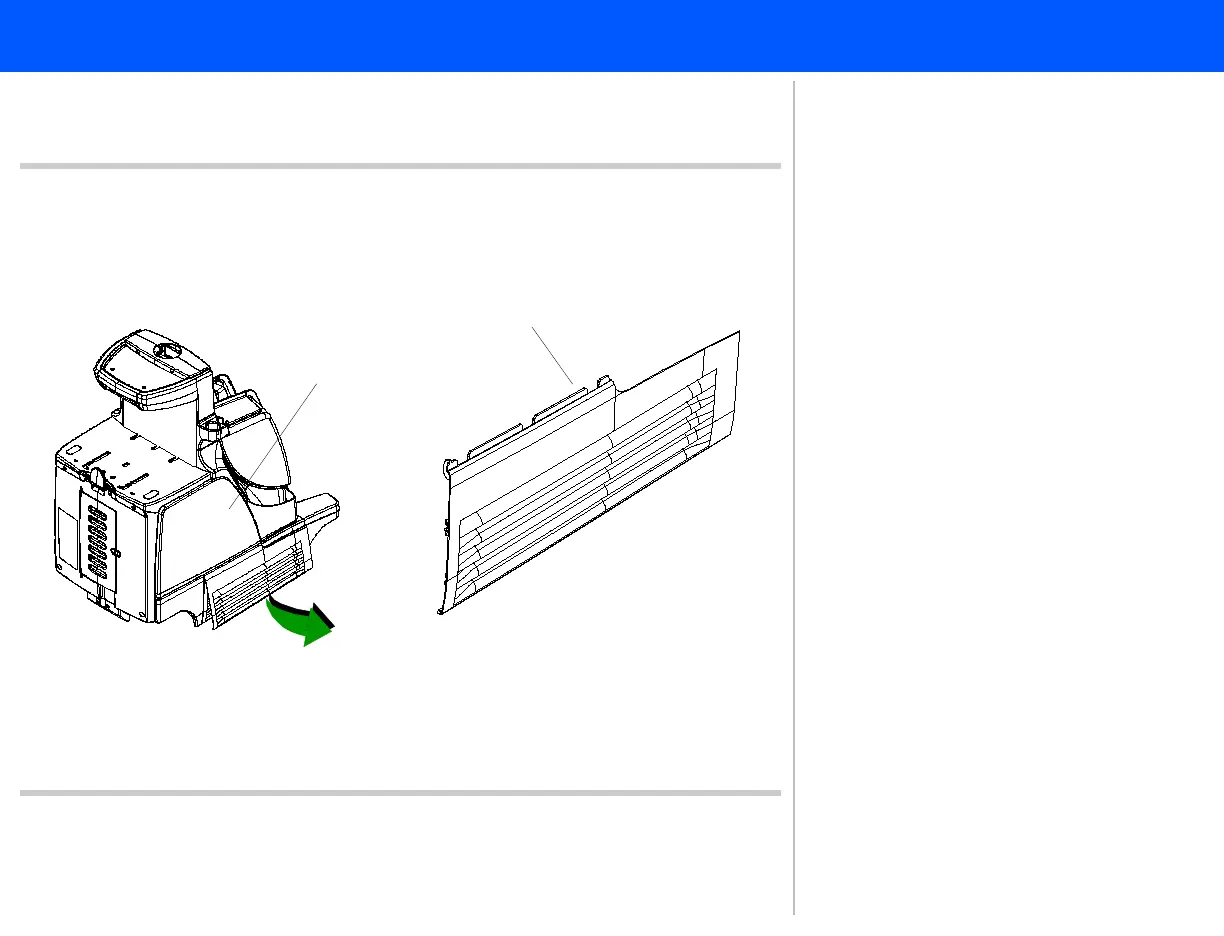

Figure 10-77 Filter Door Cover Enclosure
Cover tabs
Left side panel
Left side of system
1
2
➤ To remove or replace the filter
tray cooling fans
1. The filter door cover snaps into
place and no screws are required. To
remove the filter door cover, grasp
the bottom and gently pull outward.
2. Pull the cover downward to slide the
cover tabs out of the left side panel.
Return to .Disassembly Procedure List
(2 of 2)
