Philips iE33 - Figure 5-43 Installing Lower Deck OEM Strapping Over the VCR

4535 611 989314730-0047-01iE33 Service Manual Page 182
CSIP Level 1 Installation: Installation Procedures

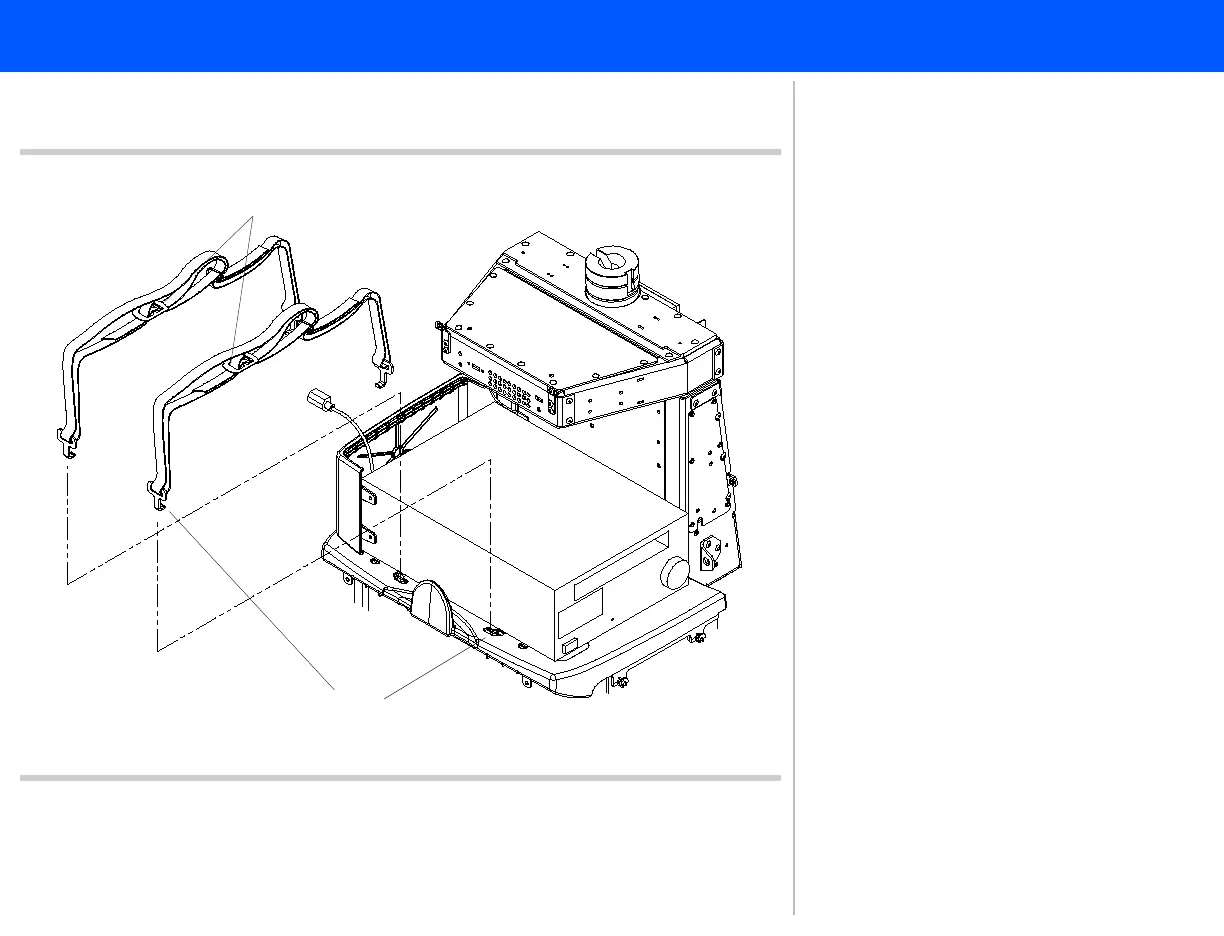

Figure 5-43 Installing Lower Deck OEM Strapping Over
the VCR
Butterfly bracket
9
11
10
9. Lay the two strap assemblies over
the VCR.
10. Place the strap clips into the four
mounting holes.
11. Remove the slack in each strap by
adjusting the excess strapping
through the butterfly bracket.
Return to Installation Procedure List.
