4535 611 989314730-0047-01iE33 Service Manual Page 289
CSIP Level 1 Disassembly: Disassembly Procedures

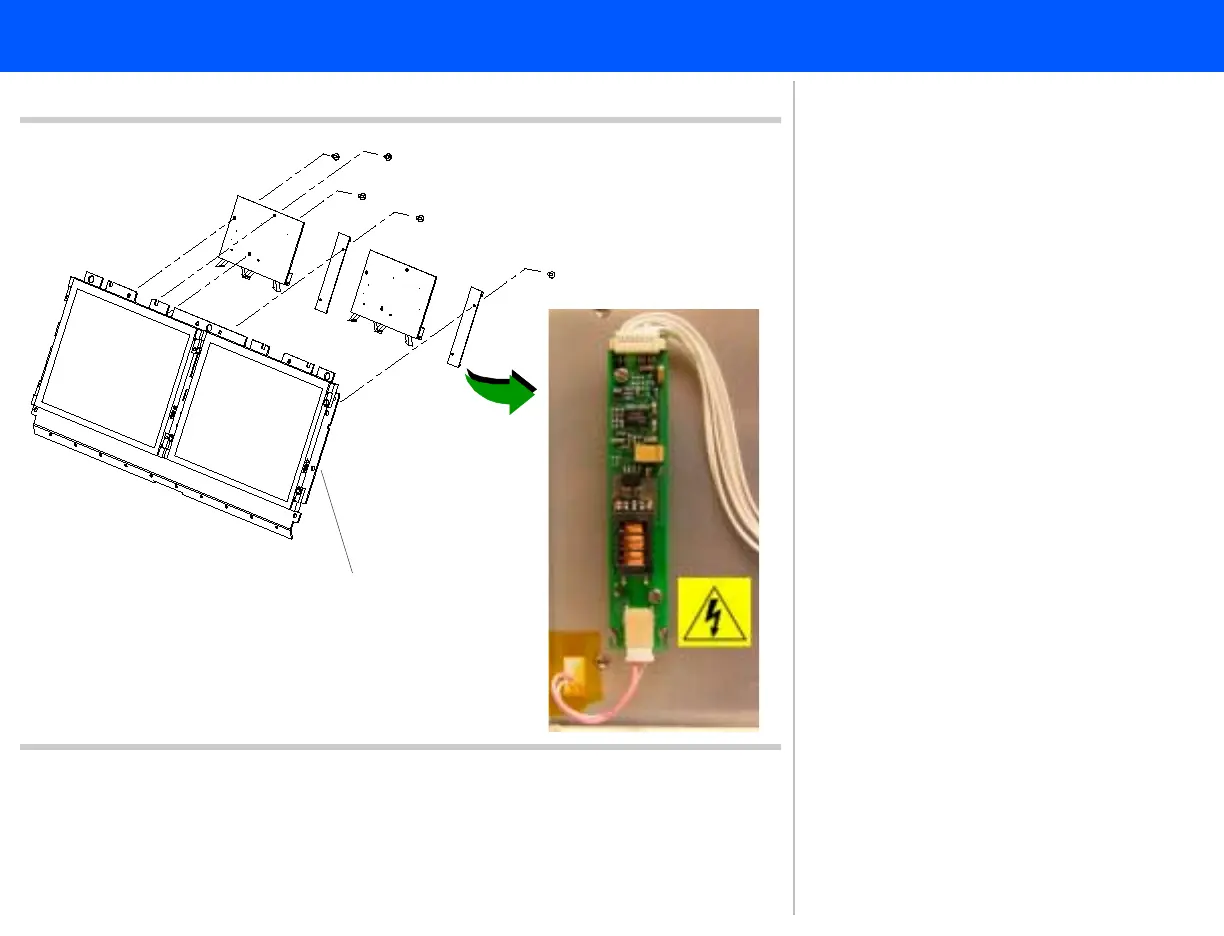

Figure 10-29 Backlight Inverter Location
Adapter plate
5
5
5. Note the Backlight Inverter location
with the voltage warning label.
Return to .Disassembly Procedure List
(1 of 2)
