Philips iE33 - System Connector Illustrations

4535 611 98931 iE33 Service Manual Page 351
CSIP Level 1 Cabling: System Connector Illustrations
System
Connector
Illustrations
System connectors are illustrated in Figure 11-1 through Figure 11-8.

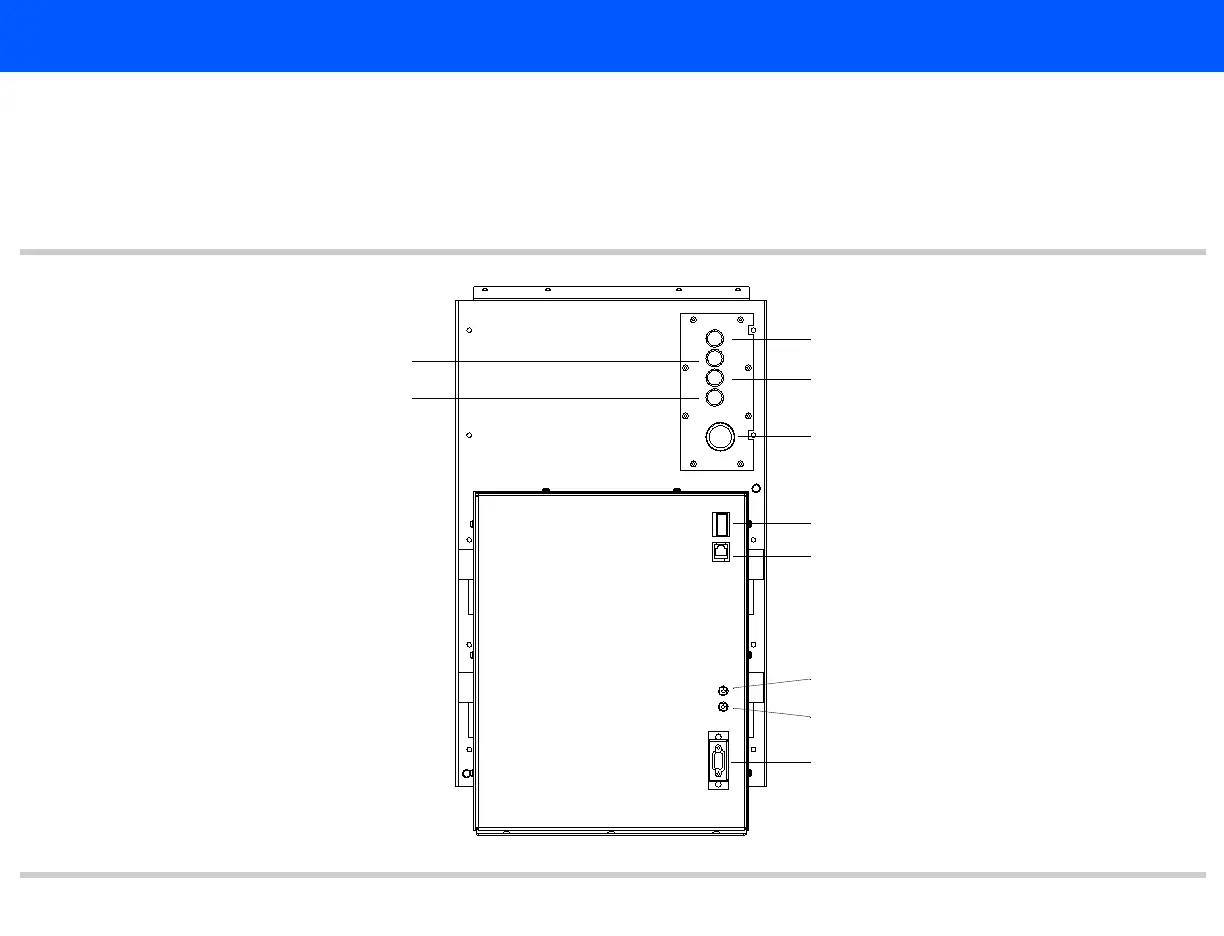

Figure 11-1 Front Panel Connector Locations (Frontplane Assembly)
J501, 0.25-in phono jack
J502, 0.25-in phono jack
J503, 0.25-in phono jack
J504, 0.25-in phono jack
ECG connector
Debug serial port (phone jack)
J1, not used by field service
Foot switch connector
(not currently used)
Not used by field service
J2, not used by field service
