Philips iE33 - Figure 10-8 Control Panel Articulation Arm Beard Enclosure Assembly

4535 611 989314730-0047-01iE33 Service Manual Page 268
CSIP Level 1 Disassembly: Disassembly Procedures

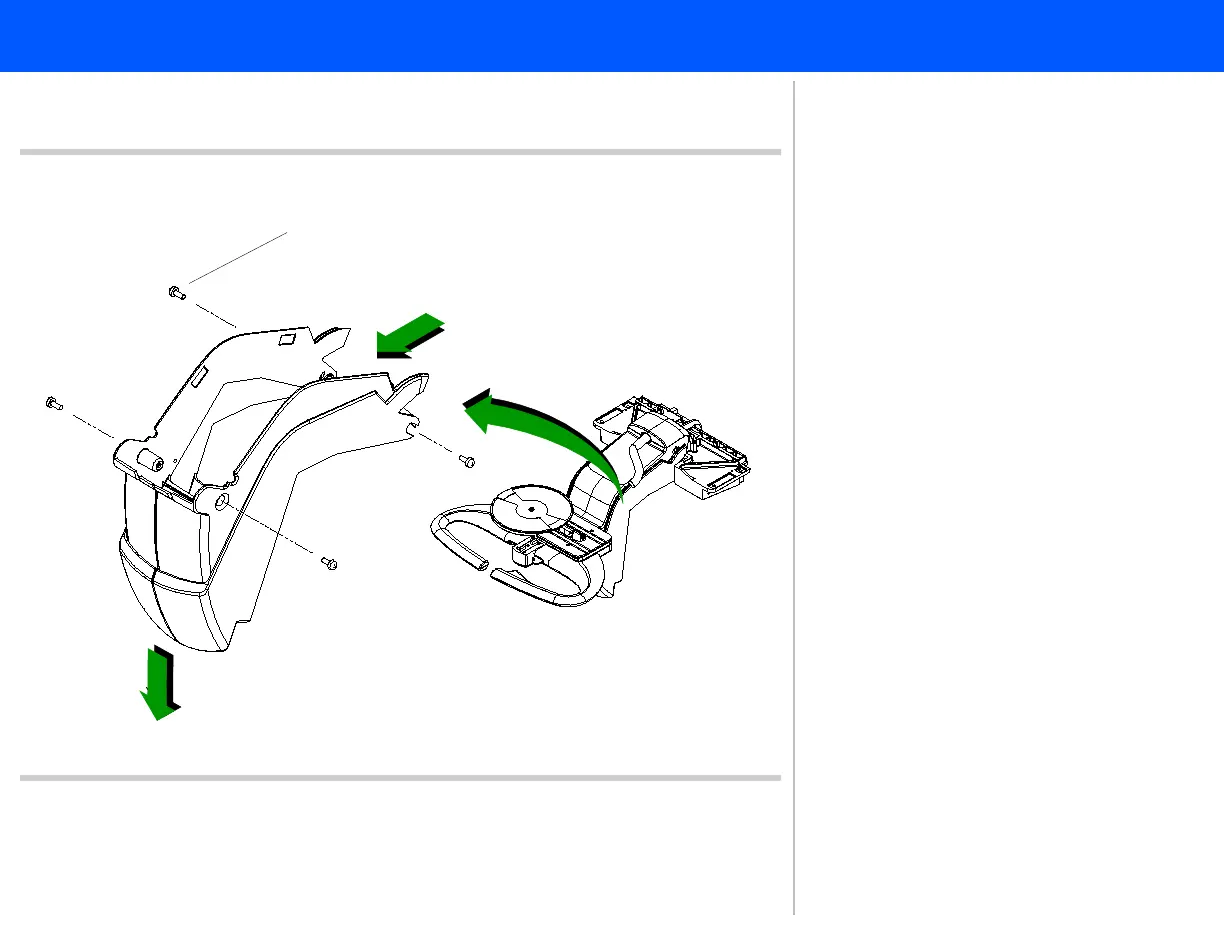

Figure 10-8 Control Panel Articulation Arm Beard
Enclosure Assembly
Panhead screws (4 plcs)
10
9
11
9. Remove the four panhead screws
securing the articulation arm beard
enclosure assembly.
10. Rotate the front side of the enclo-
sure assembly downward.
11. Then slide the enclosure assembly
forward to remove it. Set it aside.
Return to .Disassembly Procedure List
(1 of 2)
