4535 611 989314730-0047-01iE33 Service Manual Page 333
CSIP Level 1 Disassembly: Disassembly Procedures
Filter Tray, Platform Power Supply, and Battery Tray

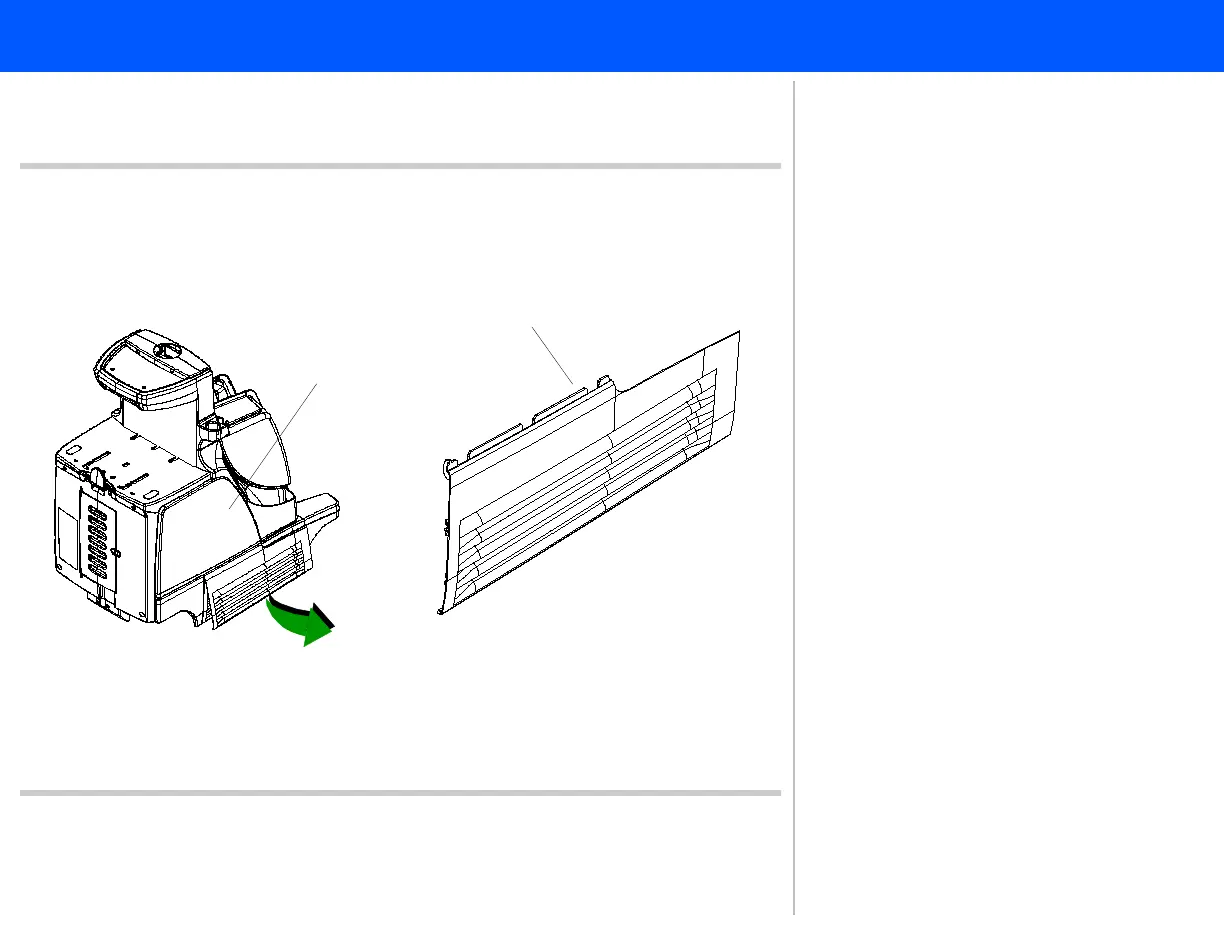

Figure 10-73 Filter Door Cover Enclosure
➤ To remove or replace the filter tray, Platform Power Supply, and
battery tray
Cover tabs
Left side panel
Left side of system
1
2
1. The filter door cover snaps into
place and no screws are required. To
remove the filter door cover, grasp
the bottom and gently pull outward.
2. Pull the cover downward to slide the
cover tabs out of the left side panel.
Return to .Disassembly Procedure List
(2 of 2)
