CSIP Level 1 Disassembly: Disassembly Procedures

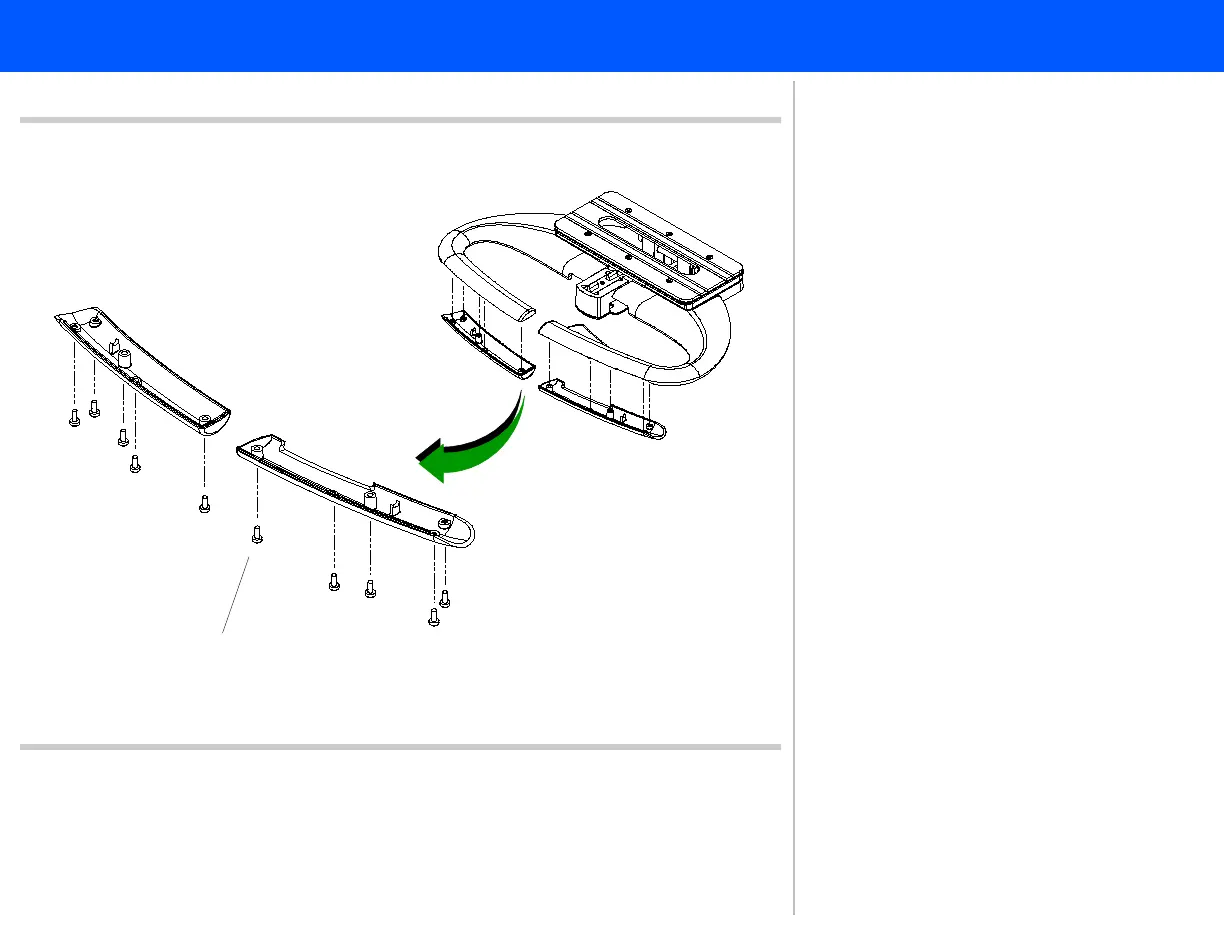

Figure 10-6 Handle Enclosures
Panhead screws (5 plcs, each handle)
6
6. Remove the five panhead screws
securing each handle enclosure to
the control panel articulation arm.
Return to .Disassembly Procedure List
(1 of 2)
