CSIP Level 1 Disassembly: Disassembly Procedures

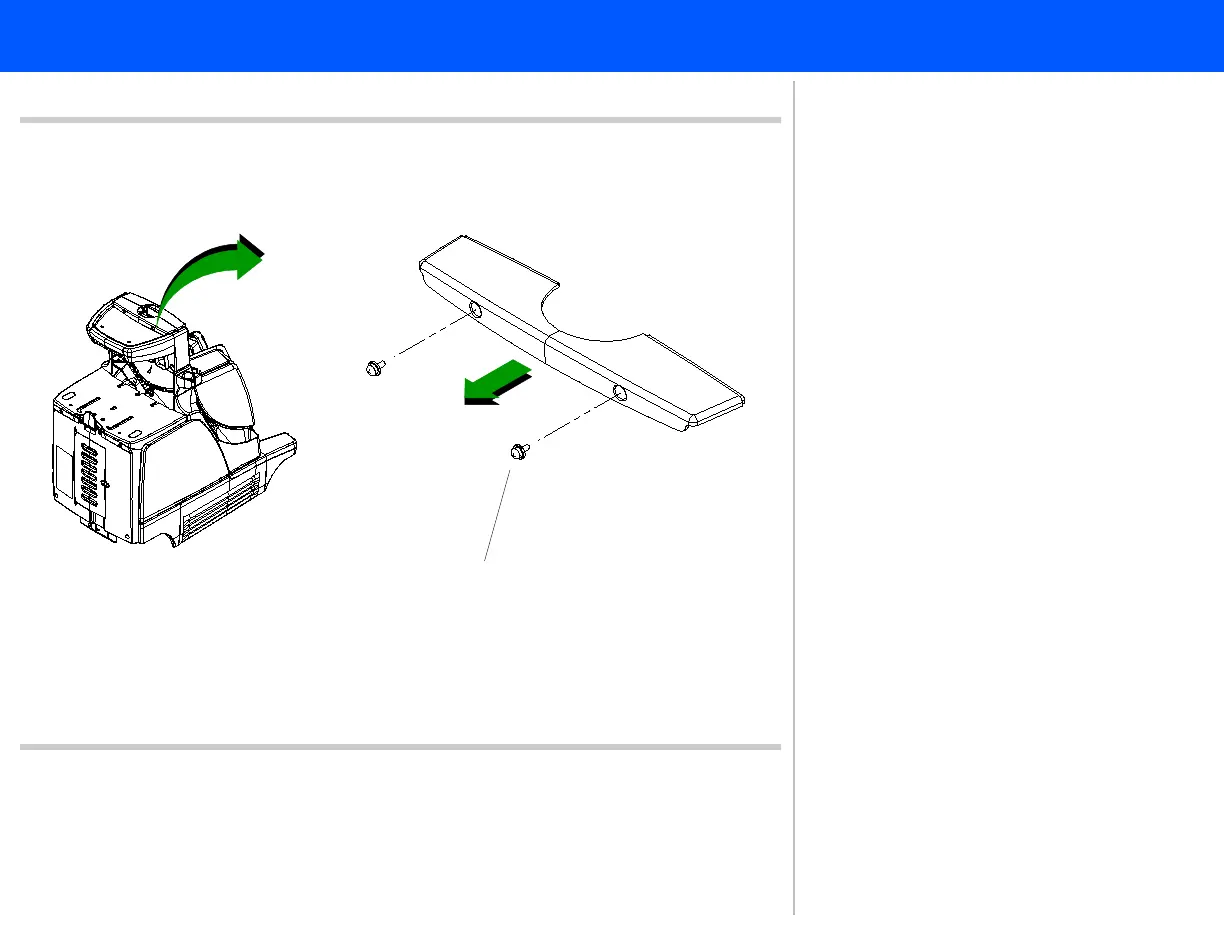

Figure 10-18 Rear Disk Bay Enclosure
Panhead screws (2 plcs)
34
35
34. Remove the two panhead screws
securing the rear disk bay enclosure.
35. Slide the enclosure away from the
display articulation arm mount and
remove the enclosure.
Return to .Disassembly Procedure List
