Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-55
Theory of Operation

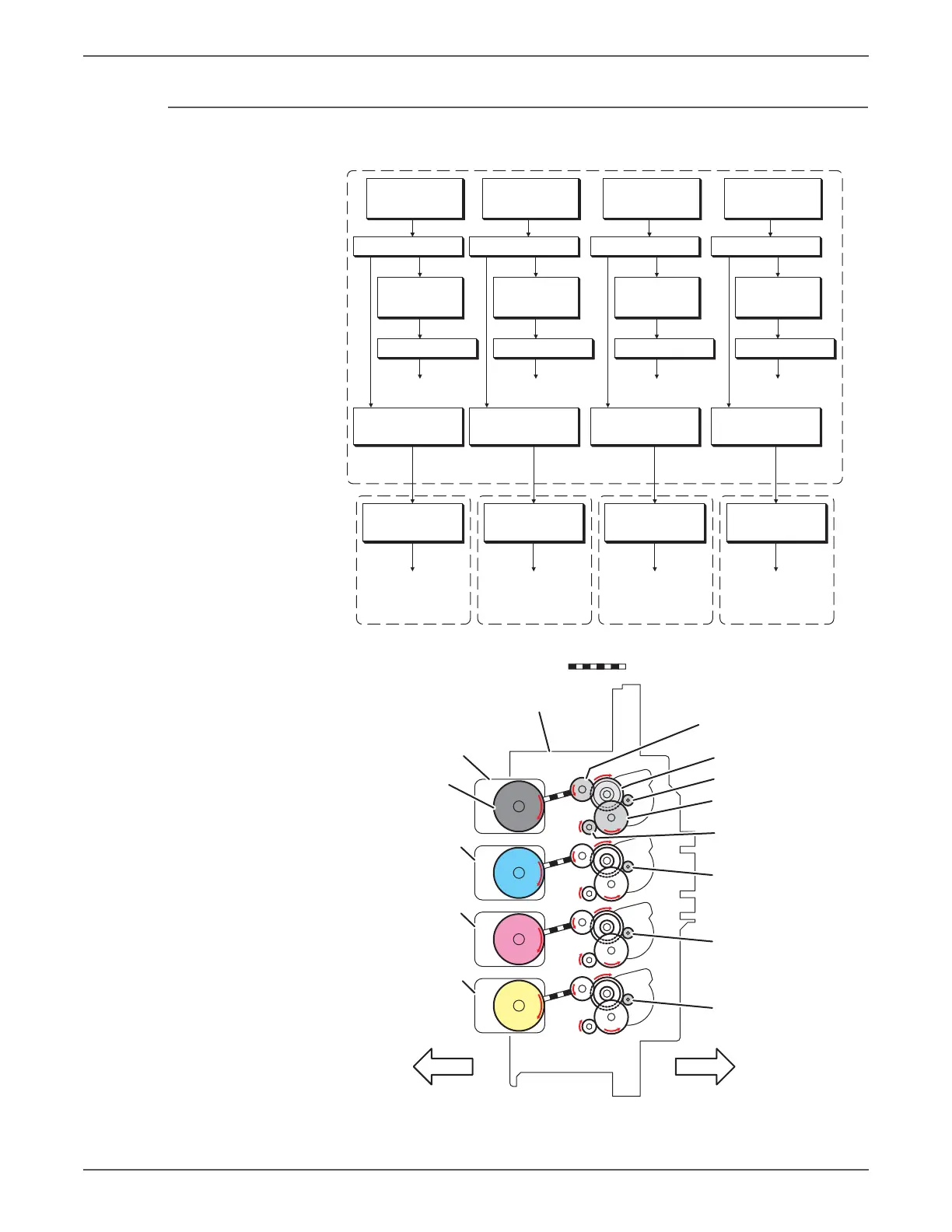

Dispense Assembly
Rotation of the toner motors drives the agitator and auger in the Toner Cartridge.
s6500-068
Dispenser
Toner
Cartridge (K)
Idler Gear (K)
Dispenser
Motor (K)
Agitator
Gear (K)
[ Auger (K) ]
Auger Idler
Gear (K)
Auger Idler
Gear (K)
[ Agitator (K) ]
Agitator
Gear (C)
Agitator
Gear (M)
Agitator
Gear (Y)
Toner
Cartridge (C)
[ Agitator (C) ]
Toner
Cartridge (M)
[ Agitator (M) ]
Toner
Cartridge (Y)
[ Agitator (Y) ]
Auger Gear (K)
Idler Gear (C)
Dispenser
Motor (C)
[ Auger (C) ]
Auger Idler
Gear (C)
Auger Idler
Gear (C)
Auger Gear (C)
Idler Gear (M)
Dispenser
Motor (M)
[ Auger (M) ]
Auger Idler
Gear (M)
Auger Idler
Gear (M)
Auger Gear (M)
Idler Gear (Y)
Dispenser
Motor (Y)
[ Auger (Y) ]
Auger Idler
Gear (Y)
Auger Idler
Gear (Y)
Auger Gear (Y)
s6500-069
Right
Left
Dispenser
Toner Cartridge (K)
Idler Gear (K)
Dispenser Motor (K)
Agitator Gear (K)
[ Agitator (K) ]
Agitator Idler Gear (K)
Auger Idler Gear (K)
Auger Gear (K)
[ Auger (K) ]
Toner Cartridge (C)
Toner Cartridge (M)
Toner Cartridge (Y)
Dispenser Motor (C)
Dispenser Motor (M)
Dispenser Motor (Y)
: Indicates The Engagement Of Gears

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
