Xerox WorkCentre 6505 Service Manual

8-48 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Feeder
Drive Clutch and Regi Bearing Kit
PL3.1.97 (Kit Clutch Assy Drv)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (SFP, page 8-18; MFP, page 8-37).

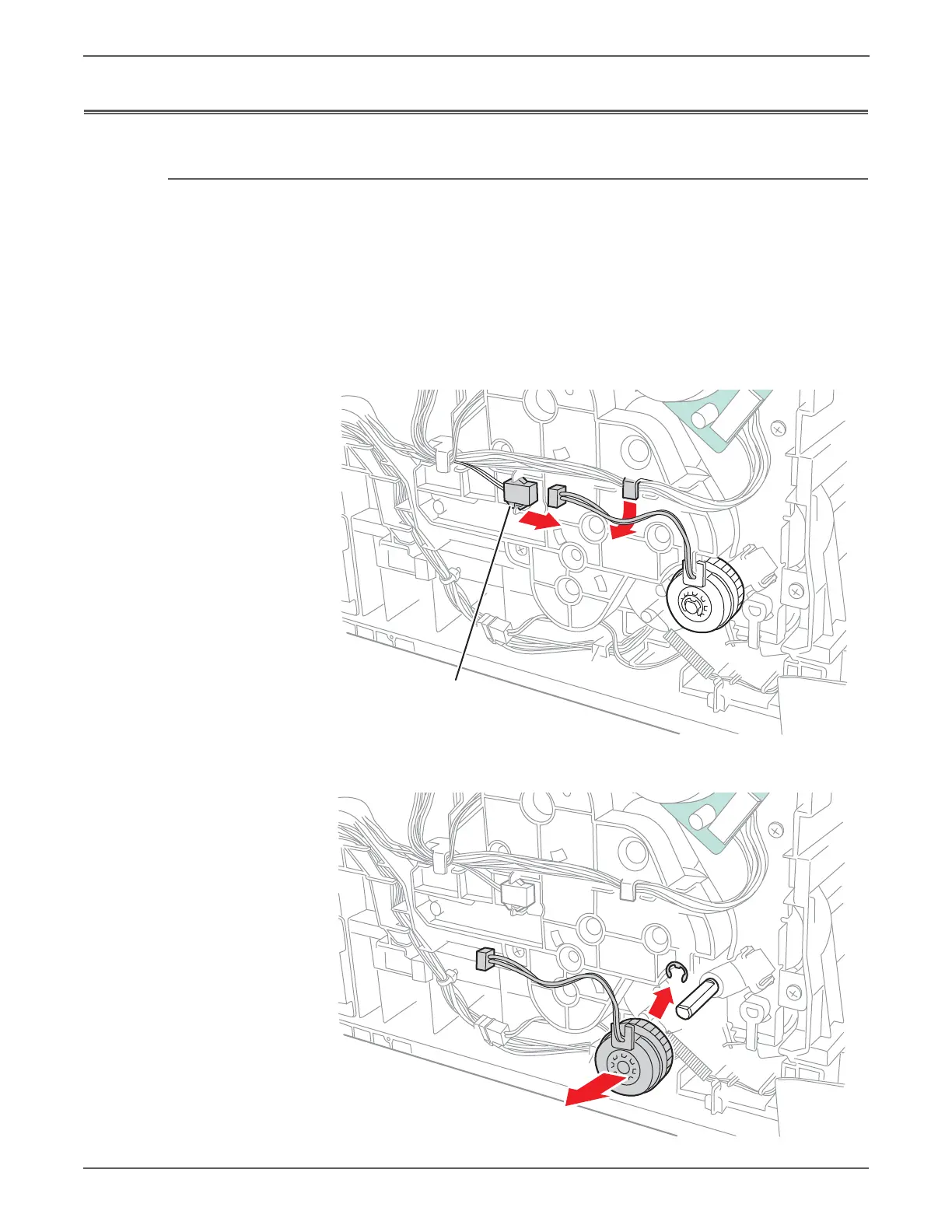

4. Release the Drive Clutch harness from the cable restraint on the Feed Drive
Assembly.
5. Disconnect the Drive Clutch connector, P/J262. Allow the relay connector to
remain with the printer side of the harness.
6. Remove the E-ring that secures the Drive Clutch on the shaft, using a
miniature screwdriver, and remove the Drive Clutch.
s6500-225
P/J262
s6500-226
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
