Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-73

Service Parts Disassembly

MFP Feeder Assembly

PL3.1.98 (MFP Feeder Assy)

1. Remove the MFP Upper Frame Assembly (page 8-67).

2. Remove the MFP HVPS (page 8-154).

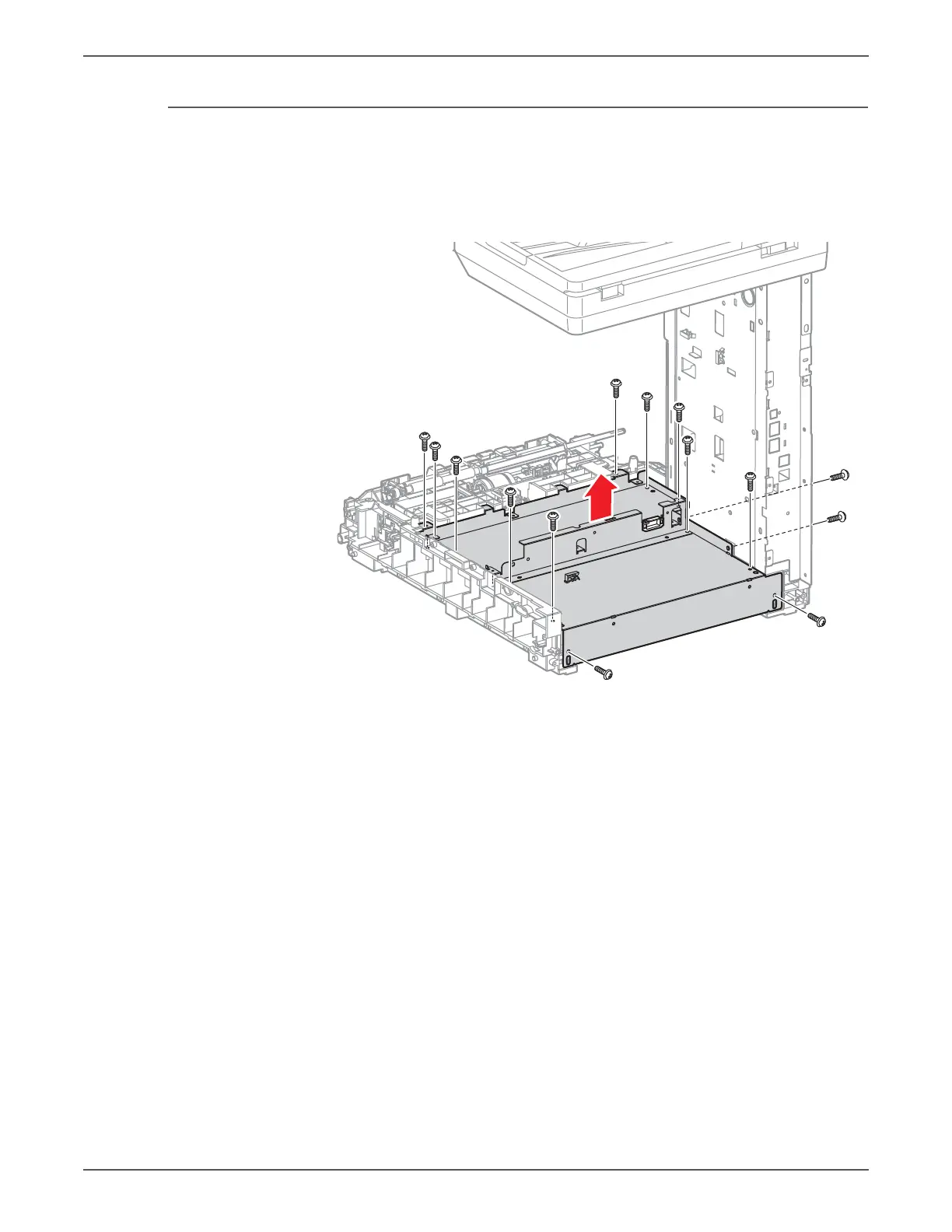

3. Remove the 14 screws that secure the HVPS chassis to the Feeder Assembly.

s6500-240
