8-128 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP PHD XPRO Harness

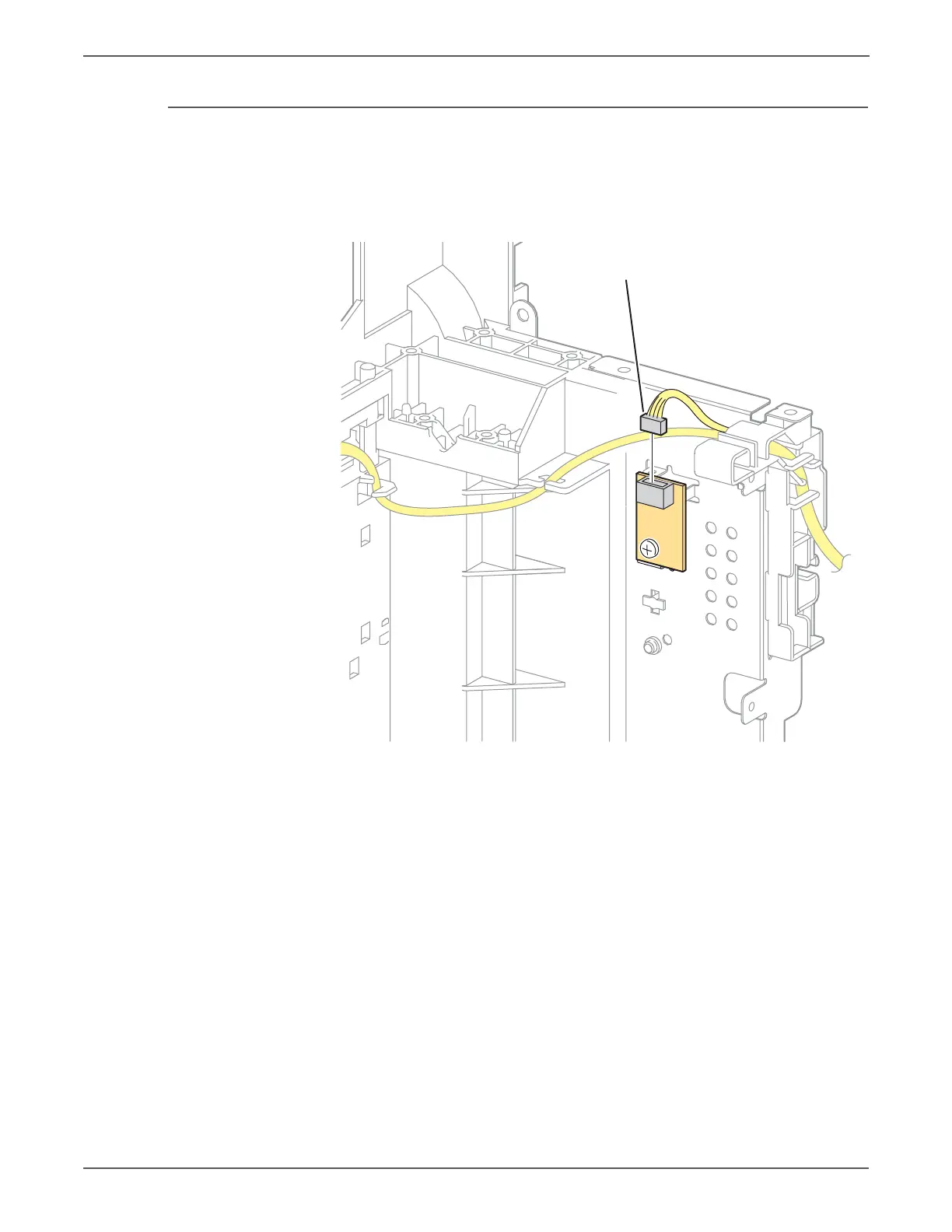

PL 9.1.11 Harness Assy PHD XPRO
1. Perform the service preparation steps on page 8-3.
2. Remove the Laser Unit (page 8-86).
3. Unplug J144 from the EEPROM Board).
s6500-503
J144
