Xerox WorkCentre 6505 Service Manual

8-10 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Fuser
PL6.1.1 (Fuser 110V or Fuser 220V)
Warning
Allow the Fuser to cool before using this procedure.
Note
Although the illustrations for this procedure show the SFP, the details for
removing the Fuser are the same for the MFP.
1. Open the Front Cover.
2. Lower the Transfer Belt.
3. Pull the lever to release the lock.

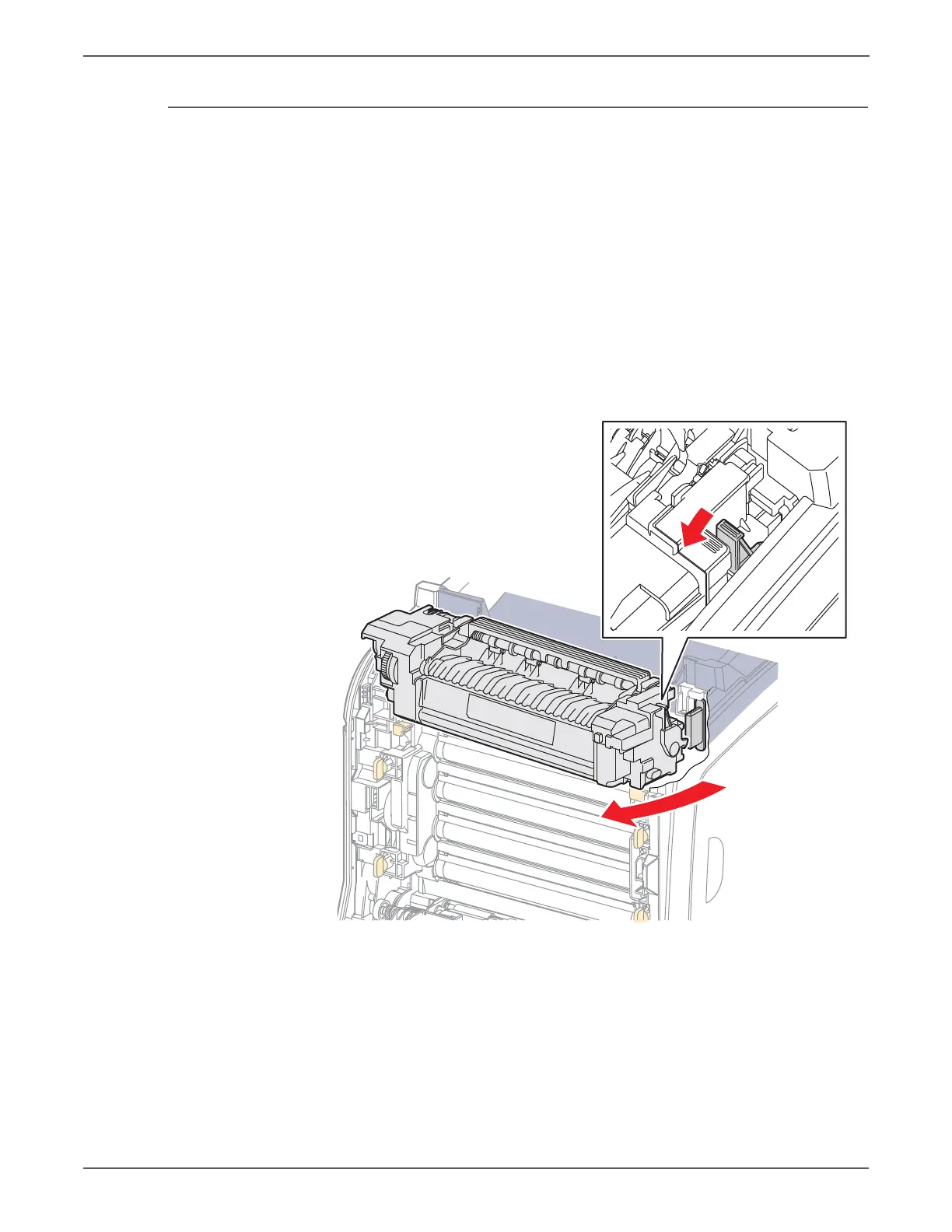

4. Swing the right side of the Fuser toward you with the lever released to unplug
the Fuser connector
5. Lift the Fuser up, then to the right to remove it.
s6500-179
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
