Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 3-145
Error Messages and Codes
IOT CTD (ADC) Sensor Error
Applicable Error Code
• 092-310
Troubleshooting Reference Table
Applicable Parts Wiring and Plug/Jack Map References
■ Imaging Unit (PL4.1.21)
■ Dispenser Assy (PL5.1.1)
■ Motor Frame Assy (PL5.1.2)
■ Dispenser Motor Assy (PL5.1.3)
■ Toner Cartridge (Y) (PL5.1.24)
■ Toner Cartridge (M) (PL5.1.23)
■ Toner Cartridge (C) (PL5.1.22)
■ Toner Cartridge (K) (PL5.1.21)
■ Toner Motor Harness Assy
(PL5.1.25)
■ Transfer Belt (PL6.1.7)
■ MCU Board (SFP PL8.2.13; MFP
PL8.3.6)
■ “Map 4 - SFP MCU Board” on
page 10-9
■ “Map 9 - MFP MCU Board and HVPS”
on page 10-18
■ “SFP Xerographics” on page 10-30
■ “SFP Toner Dispenser” on page 10-32
■ “MFP Xerographics” on page 10-43
■ “MFP Toner Dispenser” on page 10-45
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Is the shipping protection sheet still on
the Imaging Unit?
Remove the
protection
sheet.
Go to step 2.
2 Open the Front Cover and check the
ADC Sensor Window.
Is the ADC Sensor window dirty?
Go to step 3. Go to step 4.

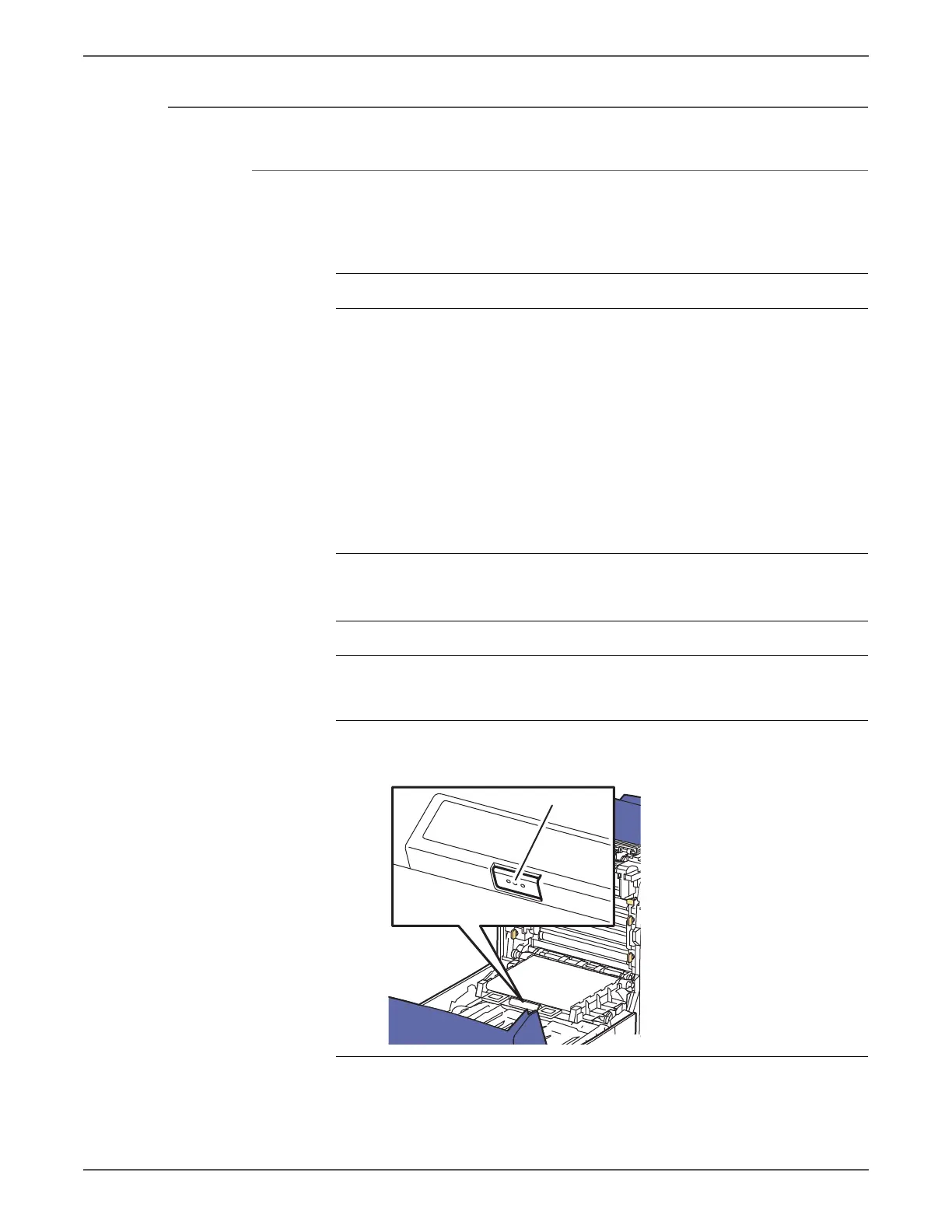

s6500-500
ADC Sensor window

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
