Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-9
Theory of Operation

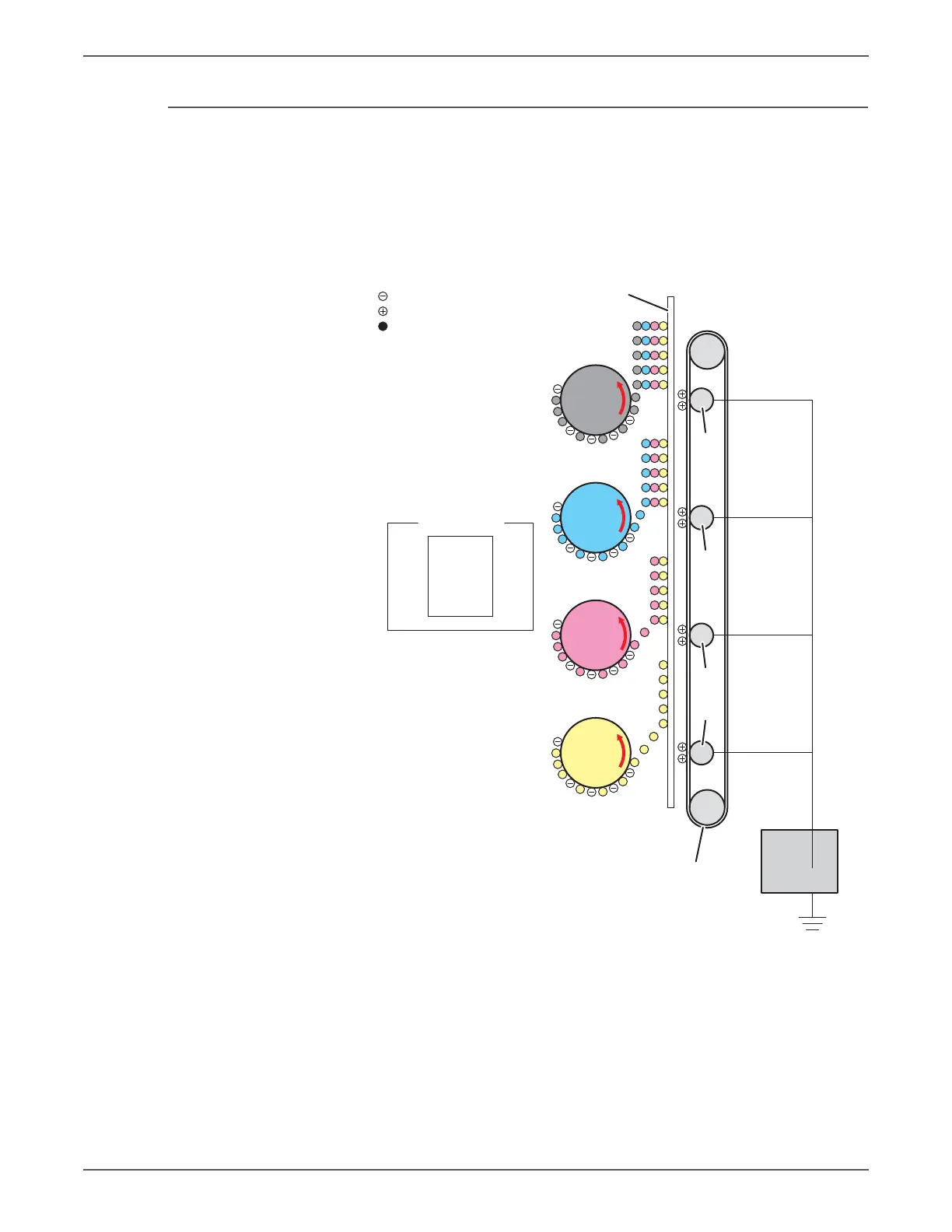

Image Transfer
During transfer, latent images formed on the drums are transferred to the media
by attraction to the BTR (bias transfer rollers) in the Transfer Belt.The BTR is a
metal roller, to which a positive voltage from the HVPS is applied. The BTR
positively charges the belt. The toner on the drums moves towards the Transfer
Belt due to the attracting force generated between the negative polarity of the
toner and the positive charge on the belt. The four color separation images are
transferred from the drums in Y, M, C, and K order.
s6500-026
: Negative electric charge
: Positive electric charge
Drum (K)
Drum (C)
BTR
Drum (M)
Drum (Y)
Drum Surface
HVPS
BTR
BTR
BTR
Paper
Transfer Belt
: Toner

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
