8-44 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Inner Pole Cover
MFP PL1.1.3 (Cover Pole Inner)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-18).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the MFP IP Board Shield (page 8-142).

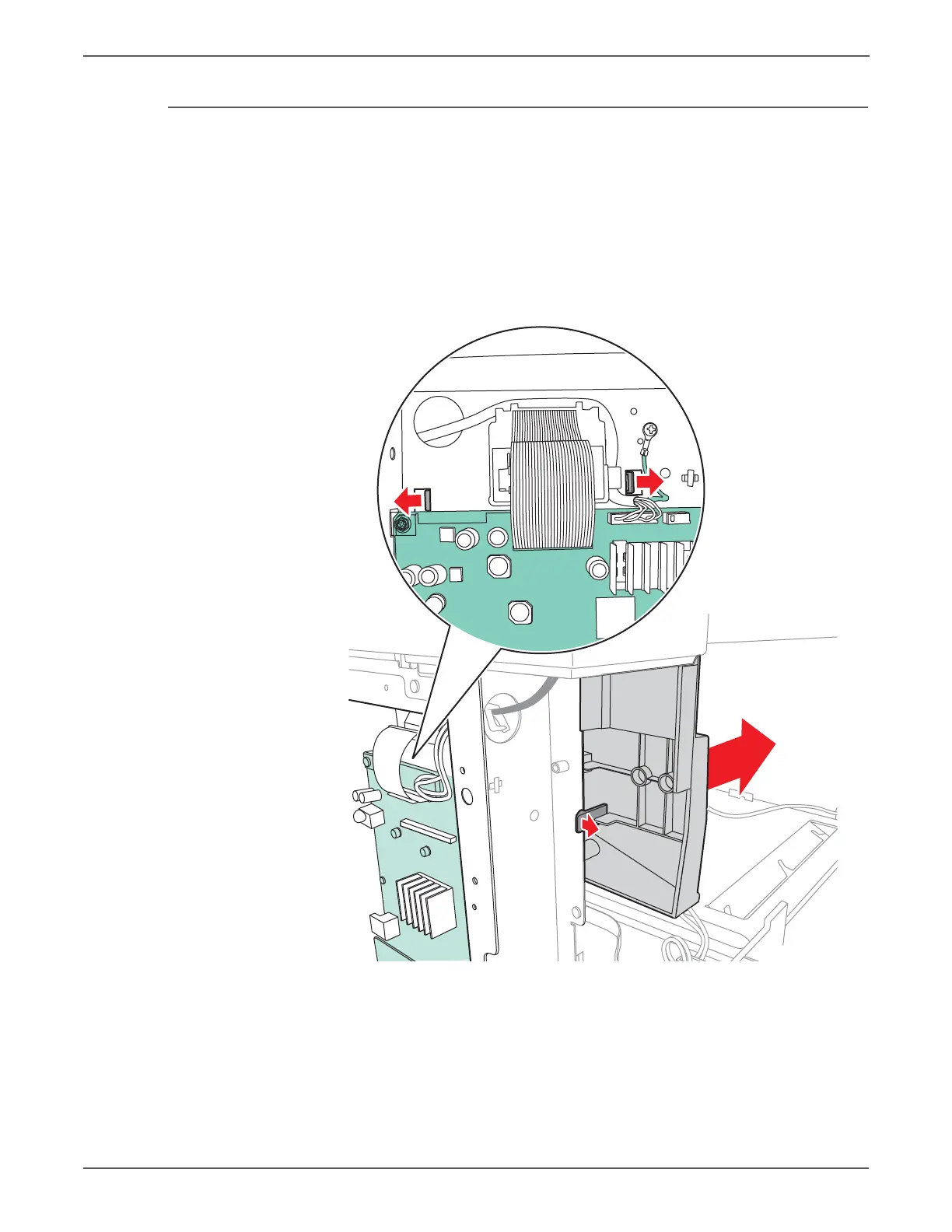

6. Release the four hooks that secure the Inner Pole Cover to the chassis.
s6500-218
1
2
